A 2022 print-technology study found a Pantone Green C reference differed from its on-screen sRGB match by a Delta E00 of 10.5. That is one example, not a universal rule, but it shows why screens make poor color references.
Spot color screen printing addresses this by using a separately prepared ink for each defined color. This article covers how it works, why it supports repeatable graphics, how it compares with CMYK, and what to confirm before production.
Key Takeaways
- Spot color uses separately mixed inks and dedicated screens instead of CMYK blends.
- It suits logos, type, line art, labels, and bold brand graphics.
- Consistency also depends on substrate, registration, curing, proofing, and records.
- The right method depends on artwork, material, quantity, durability, and repeat orders.
Understanding Spot Color Screen Printing

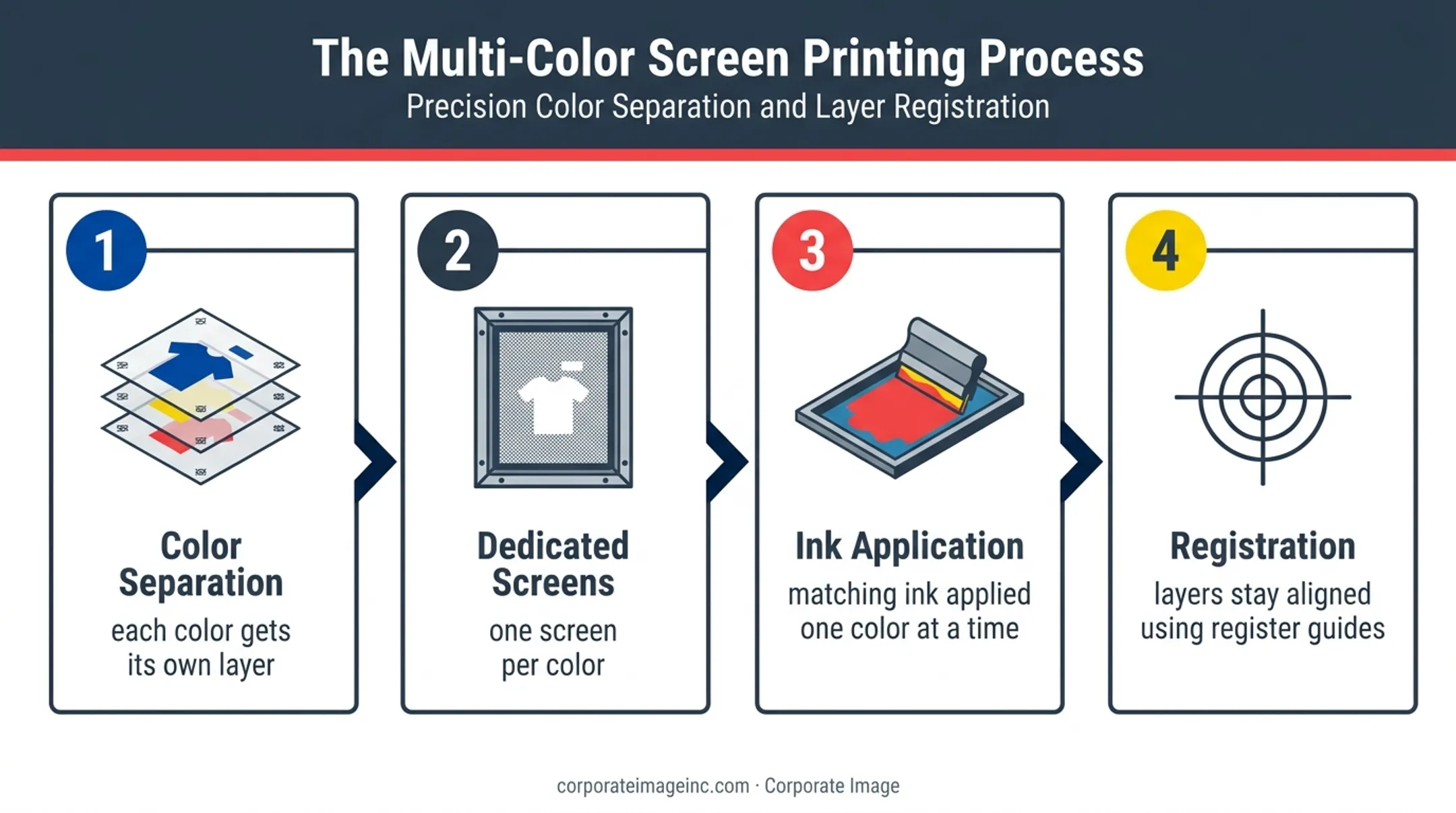

How spot color screen printing works
Each color in the artwork is separated onto its own layer and its own screen. The printer applies the matching ink one color at a time, and registration keeps the layers aligned. Registration guidance from the Screen Printing Technical Foundation is simple: keep register guides in the same positions for every color and run all colors on the same press.
A spot ink is a premixed color applied directly. A CMYK build creates the same color from overlapping dots of cyan, magenta, yellow, and black. Spot work can include tints or halftones, but core brand colors are usually specified as solid areas when consistency matters most.
Corporate Image hand-mixes inks for exact color matches. Translucent inks also let 3M Scotchlite reflective material read as highly visible color at night.
What spot color, PMS, and Pantone mean
Spot color is the printing method. The Pantone Matching System (PMS) is the standardized reference used to identify or formulate each spot ink, with formulas mixed from a palette of 18 basic colors.
Record the approved Pantone reference, a physical swatch, or a previously approved sample with the artwork. Don't rely on an on-screen color. Pantone's C and U suffixes refer to coated and uncoated paper, so they don't guarantee a match on vinyl, metal, or plastic.
Graphic types that suit spot color
Spot color is a strong fit for:
- Corporate logos and identity marks
- Fleet identification
- Equipment labels and OEM markings
- Safety markings and wayfinding
- Decals and icons
- Bold promotional art with a limited palette
Weaker fits include photographs, subtle gradients, and art that needs many blended colors. Screen printing can produce up to 6-color images and halftones, but it can't match digital detail on those jobs. For full-color or highly blended art, use simulated process or digital printing instead.
Why Spot Color Helps Keep Brand Graphics Consistent
More direct control over key brand colors
Assigning a dedicated ink to a key brand color removes much of the drift that comes from CMYK conversion and from differing software and devices. Even so, it doesn't guarantee identical appearance everywhere.
Substrate color, gloss, texture, opacity, lighting, and ink finish all change how a color reads. Nazdar's data sheet for its 4200 Series UV ink flags PVC vinyl and HDPE as materials with potentially limited adhesion and recommends testing each print run.
Repeatable production from an approved specification
Keep one production record per graphic:
- Color reference or ink formula
- Artwork version
- Substrate and finish
- Screen information
- Curing or drying requirements
With that record, a printer can reproduce replacement decals, additional fleet vehicles, new-location signage, or later equipment batches.
Repeat work is also where screen printing's economics improve. Pre-production setup (separations, positives, screens) can make small one-time jobs costlier than digital, while repeat orders shift the balance toward screen printing. For something like 10,000 hard-hat decals, it can be faster and cheaper.
Consistency across different surfaces
One brand system may land on painted metal, vinyl, plastic, glass, or coated panels. Each may need a compatible ink and finish, plus a test. The goal is controlled visual consistency, not an assumption that one untested ink looks identical everywhere.
Supporting multi-site rollouts
Approved color standards help marketing teams, manufacturers, property managers, resort operators, and government agencies coordinate graphics across many assets. Define up front:
- Who approves the color
- Which sample is the master reference
- How substitutions are handled
- When a new proof is required
Quality checks that protect the result
- Approve a first article before the full run
- Check registration
- Compare color under standardized lighting; ISO 3664:2025 specifies D50 viewing conditions
- Test adhesion and durability where relevant
- Inspect finished graphics against the approved reference
Reproof whenever the substrate, ink system, supplier, artwork, or production conditions change.

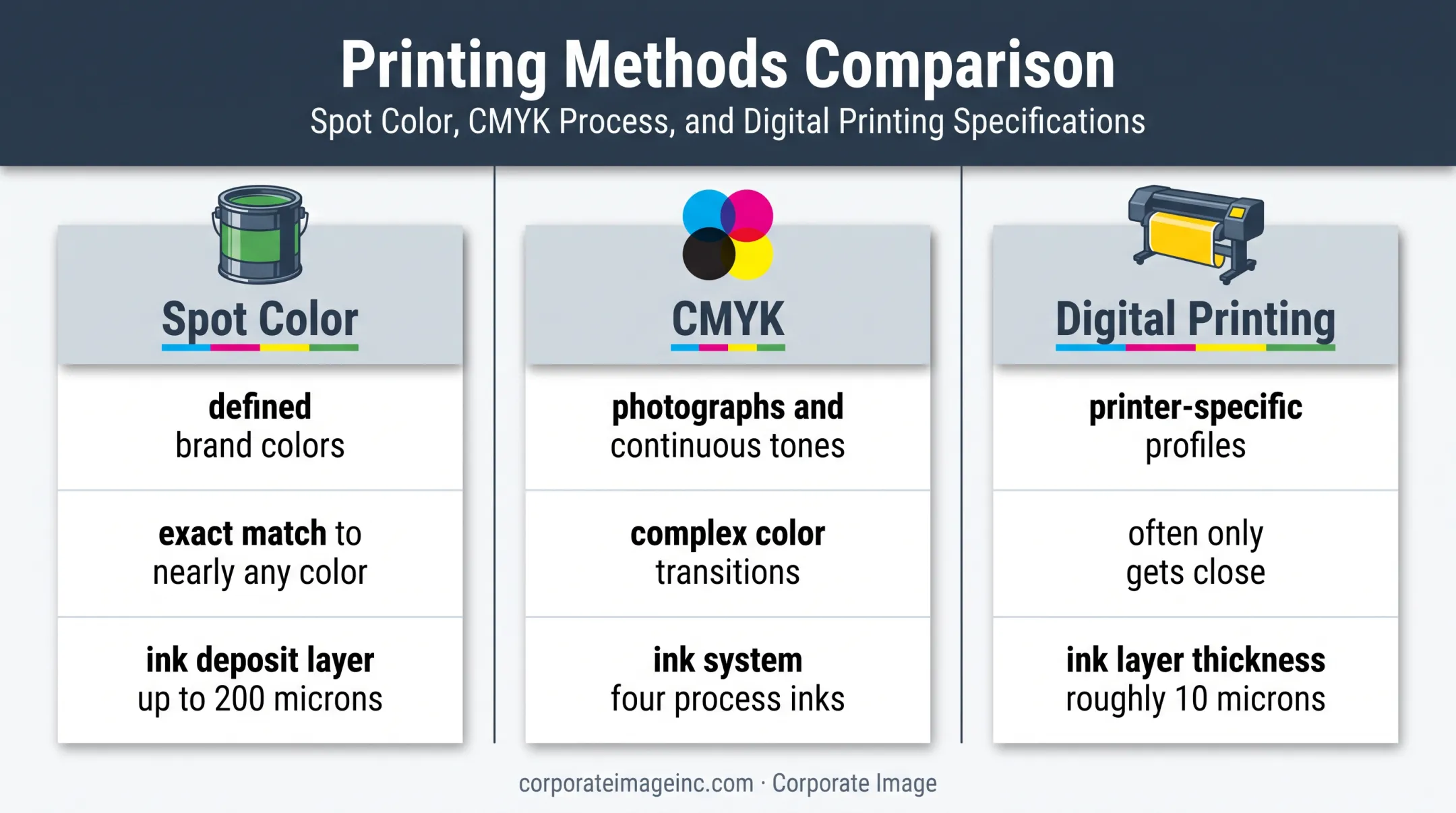

Spot Color vs. CMYK and Other Methods
Neither method wins across the board. Spot color suits defined brand colors and bold elements. CMYK fits photographs, continuous tones, and complex color transitions.
Related techniques expand what you can do without a full process set. Halftones use dots of a single ink to create tonal effects. Simulated process combines several spot colors and dots to reproduce more detailed imagery without a standard CMYK set.
Ink mix and deposit thickness set the methods further apart. Screen ink is mixed for an exact match to nearly any color. Digital printing relies on printer-specific profiles and can often only get close. Digital also deposits roughly 10 microns of ink, versus up to 200 microns for screen printing.
Use this checklist to choose:
- How complex is the artwork?
- How many colors are required?
- What is the substrate?
- What is the quantity?
- Which elements are color-critical?
- Is there variable content?
- What durability is expected?
- Will you reorder?
Preparing Artwork and Managing Production
Artwork setup for reliable separation
- Use vector artwork where appropriate
- Name spot swatches clearly
- Keep colors on separate layers
- Outline fonts or supply them
- Remove unintended RGB or CMYK conversions
Mark white layers, knockouts, overprints, and underbases. In Illustrator, Adobe's overprint guidance notes that opaque overlapping colors knock out what's beneath by default, so overprints must be set deliberately.
Trapping, registration, and fine details
Slight overlaps (traps) prevent visible gaps between adjacent colors when registration varies a little. Minimum line weights, small text sizes, halftone settings, and mesh specifications depend on the ink, shop, and material. Confirm them with your production provider rather than trusting a universal number.
Proofing before the full run
A digital proof is only a monitor image. A drawdown or first article puts real ink on the real material, which a monitor or PDF can't fully predict. Approve color and finish on the intended substrate, or a closely matched one, before a large run.
Records for repeat orders
Preserve:
- Final artwork
- Spot color names or formulas
- Approved physical sample
- Substrate, finish, and dimensions
- Installation orientation and application notes
Change control keeps an outdated logo file, altered formula, or substitute material from slipping into a repeat order unnoticed.

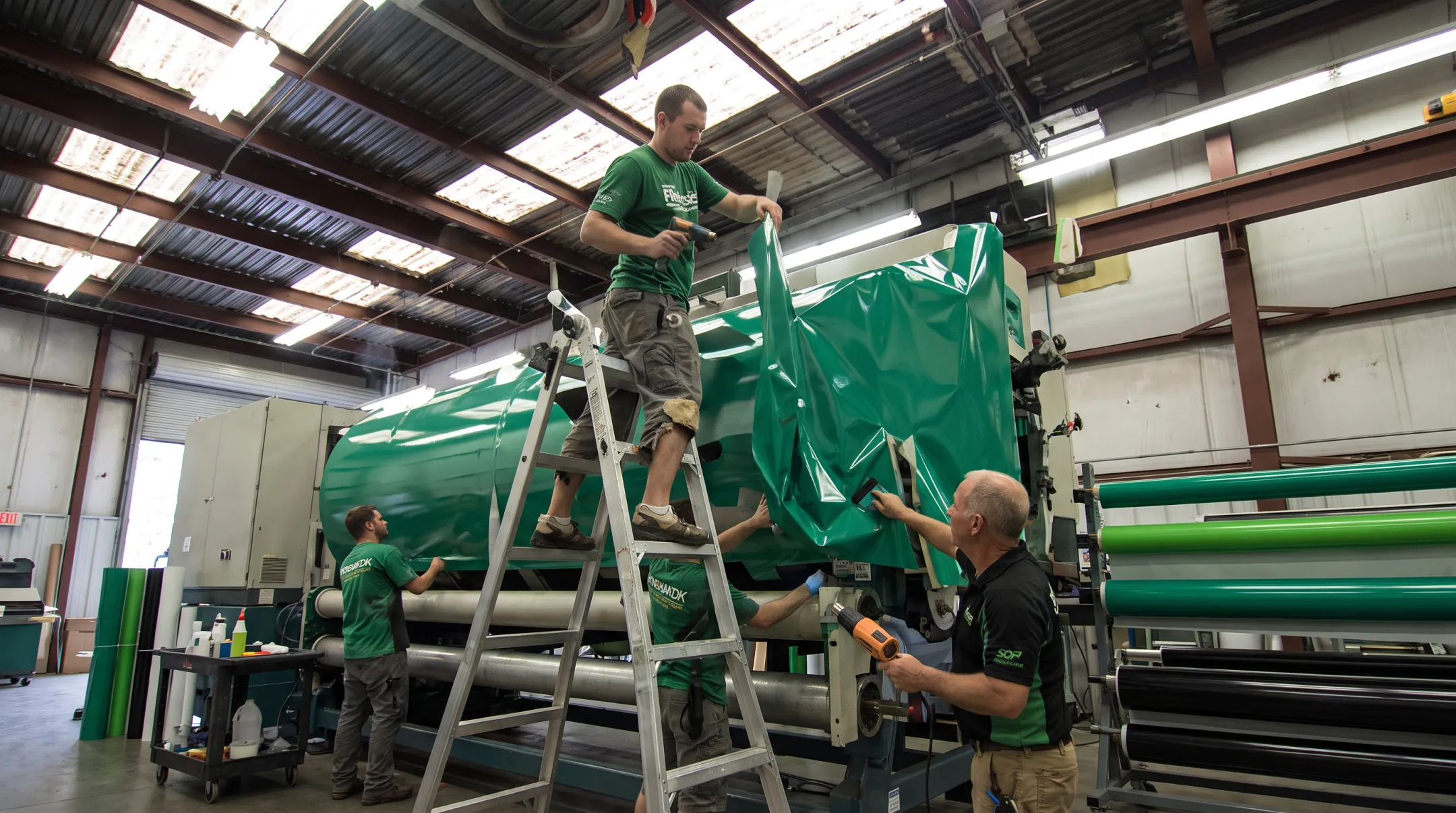

Working with a full-service graphics provider
When design, production, and installation are coordinated, the approved color specification travels intact from artwork to finished install. Corporate Image, based in Salt Lake City, offers custom graphics, decals, signage, printing, and installation with more than 30 years of experience.
Its work spans indoor, outdoor, industrial, fleet, and resort environments, and its installers are 3M-certified.
Applications and Project Planning
Spot color planning applies to:
- Manufacturer equipment decals and labels, such as OEM identification, control, and safety markings
- Branded service fleets
- Resort wayfinding and trail signs
- Retail and restaurant graphics
- Commercial property signage
- Public-sector identification
Before requesting a quote, gather:
- Application surface
- Indoor or outdoor exposure
- Expected wear
- Quantity
- Color-critical elements
- Artwork availability
- Installation requirements
- Future reorder plans
Ask about a different process or a hybrid when the job involves:
- Photographic imagery
- Variable data
- Detailed gradients
- Short personalized runs
- Materials that need specialized ink
Digital printing often fits those jobs better.
Frequently Asked Questions
What is spot color in printing?
Spot color is a premixed ink applied directly as an individual color. It gives clean, controlled reproduction of logos and other graphic elements.
What's the difference between spot color and CMYK?
Spot color uses a dedicated ink. CMYK combines four process inks in fine screens to simulate a wider range. Spot suits logos and bold graphics; CMYK suits photos and gradients.
Is Pantone the same as spot color?
No. Pantone is a color reference system, while spot color describes a separately applied ink. A Pantone color can be printed as a spot color.
How do printers keep spot colors consistent across different materials?
They work from an approved color reference, physical proofs, substrate testing, documented specifications, and quality checks against the approved sample.
When should a business choose spot color screen printing?
Choose it for color-critical logos, bold graphics, labels, decals, and repeat brand applications. For complex imagery, CMYK, simulated process, or digital printing may fit better.
