This guide is for panel builders, equipment manufacturers, engineers, maintenance teams, safety professionals, and purchasing teams who need to define label requirements before requesting production. The planning sequence is simple: establish the information required, separate UL, OSHA, NEC, and NFPA 70E responsibilities, select materials for the environment, define placement, and prepare a complete supplier handoff.
Final compliance decisions belong with the current standards, your project specifications, and the authority having jurisdiction (AHJ). Treat this article as a planning aid, not a code review.
Key Takeaways
- Start with the panel's electrical, safety, and environmental data, not label size or material.
- A UL 508A listing mark is not the same as circuit, arc-flash, or rating labels.
- Match materials, adhesives, and finishes to chemicals, UV, moisture, abrasion, and temperature.
- Approve artwork, samples, and revisions before a large production order.
Start with the Information the Label Must Communicate
Identify the label's purpose first
Purpose drives content, size, location, and durability. Don't ask one label to do everything. Separate these jobs:
- Equipment identification and nameplate ratings
- Circuit or component identification
- Hazard warnings
- Operating instructions
- Arc-flash information
- Traceability or asset labels
Each has a primary reader: an installer checking ratings, a technician tracing a circuit, an operator reacting to a warning, an inspector reviewing markings. Write that reader down for every label.
Build a complete data inventory
List every field the project needs:
- Manufacturer and model
- Serial or asset number
- Supply voltage, phase, and frequency
- Full-load current and SCCR
- Enclosure type
- Circuit identifiers and warnings
- Revision and service contacts
UL's ICP marking guide lists manufacturer name, supply voltage, phases, frequency, full-load current, SCCR, service-equipment designation, wiring-diagram identification, and enclosure type number as relevant panel markings.
Ratings and safety values must come from approved electrical documents and qualified personnel. A label supplier should never infer voltage, SCCR, current, or hazard data from incomplete artwork.
Separate required markings from helpful ones
Some content is required by a standard, the panel design, or the inspector. Other content, such as asset barcodes, simply helps maintenance. Know which is which.
Do not use a QR code or barcode in place of required human-readable markings. Treat them as supplements only. NEC 409.110 calls for permanent markings visible after installation.
Set a legibility hierarchy
Rank content visually: signal word and hazard symbol first, critical ratings and circuit IDs next, instructions after, secondary data last. ANSI Z535.4 describes a signal-word panel plus a message panel that states the hazard, likely consequence, and how to avoid it.
Consider contrast, font, spacing, units, language needs, lighting, viewing distance, and gloves or PPE. Pull specifics from ANSI Z535 and your project requirements rather than guessing font sizes.
Tie the label list to engineering documents
Align every label with approved schematics, panel layouts, bills of materials, wire schedules, and equipment tags. Consistent identifiers and revision tracking keep the physical panel, drawings, spare parts, and future replacement labels in agreement.

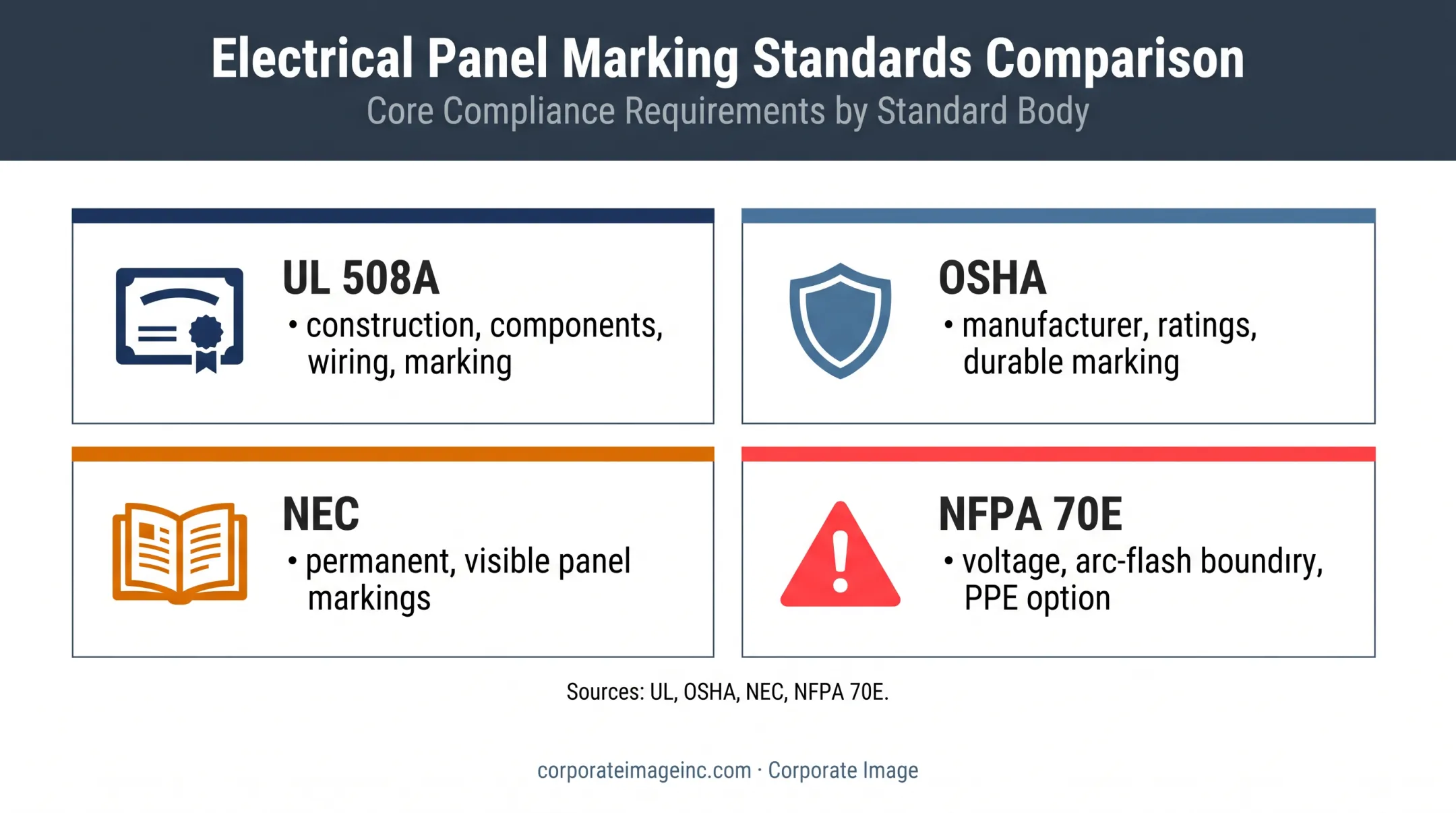

Map the Specification to UL 508A, OSHA, NEC, and NFPA 70E
What UL 508A does and does not define
UL 508A covers construction, components, wiring, marking, and evaluation of industrial control panels. UL's ICP Shop Program lets qualified shops apply UL certification marks to panels built at their facility.
The "three UL labels" idea is misleading. UL's guide describes three product identities under category NITW:
- Enclosed Industrial Control Panel
- Open Industrial Control Panel
- Industrial Control Panel Enclosure
The enclosure-only identity does not certify the populated panel. SCCR, voltage, and manufacturer data are panel markings, not a third listing category.
A custom printed label is not proof that a panel is UL Listed. UL says mark use depends on Follow-Up Service, and separable UL labels must come from UL or a UL-authorized printer.
OSHA marking requirements
Under 29 CFR 1910.303, electric equipment must be marked with the manufacturer's name or identifying mark and necessary ratings. The marking must be durable enough to withstand the environment. Disconnects and circuits must be legibly marked for purpose unless evident.
Where accident-prevention signs apply, 1910.145 calls for concise, easily read wording. OSHA sets no universal artwork layout. Check whether your state runs an OSHA State Plan, since those must be at least as effective as federal rules.
NEC and the AHJ
No single NEC section governs every panel label. Relevant provisions include:
- 409.110: industrial control panel markings, permanent and visible after installation
- 110.21(B): field-applied hazard markings that withstand the environment
- 110.22: disconnect identification
- 110.16: arc-flash hazard warnings
Adoption varies. NFPA's enforcement map shows jurisdictions on different editions, and the current NEC is the 2026 edition. Confirm the adopted edition, local amendments, and AHJ expectations before finalizing artwork.
NFPA 70E and arc-flash labels
Arc-flash labels depend on the facility's risk assessment and electrical safety program. In the 2024 text, 130.5(H) calls for labels on equipment likely to need energized work, with nominal voltage, arc-flash boundary, and a permitted PPE-information option.
The equipment owner is responsible for the label data. Labels should be reviewed at intervals not exceeding five years.
NFPA lists 2027 as the current 70E edition, so verify which one applies. An identification label and an arc-flash label serve different purposes and may need separate locations and review.
Build a standards-and-approval matrix
Use one table that captures for each label:
- Identity: label ID, purpose, exact text
- Compliance: standard or authority, source document
- Production: location, material
- Governance: reviewer, revision, approval status
Route it through the panel engineer, safety professional, compliance lead, and the AHJ when required. Cite current official sources, not supplier blogs.
Choose Materials and Construction for the Operating Environment
Profile the actual exposure
Document indoor or outdoor use, sunlight, condensation, dust, oils, solvents, washdown, heat, cold, abrasion, vibration, and cleaning. Add touch frequency, service life, and what happens if the label fails. A passive asset tag and a safety warning don't need the same construction.
Compare face materials without picking a universal winner
Options include polyester, vinyl, polycarbonate, metal nameplates, and anodized aluminum. Selection depends on flexibility, impact resistance, transparency, permanence, and the surface.

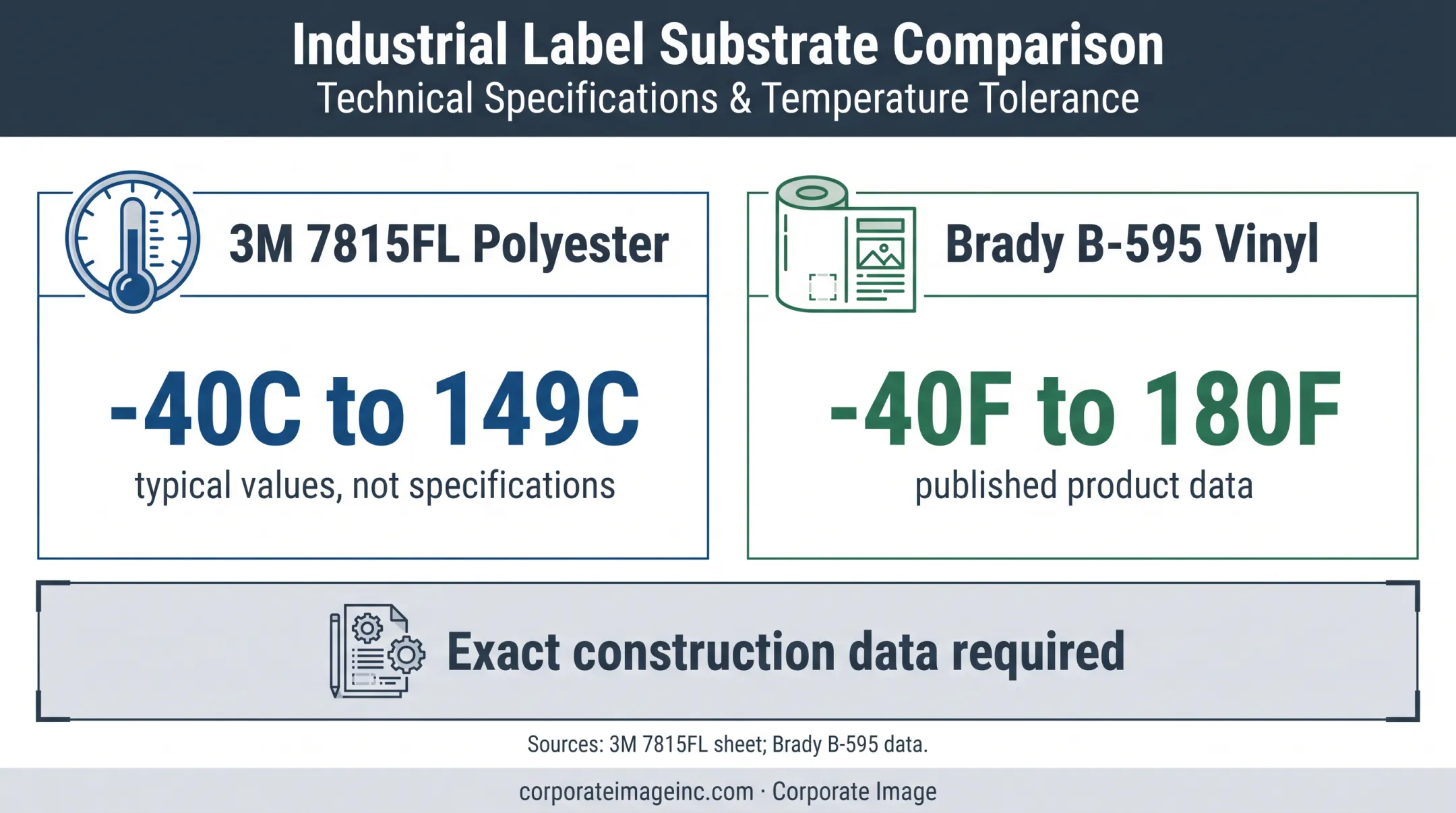

Published data is product-specific. 3M's 7815FL polyester lists long-term resistance from -40°C to 149°C (-40°F to 300°F), but its sheet says values are typical, not specification values. Brady's B-595 vinyl reports -40°F to 180°F.
Neither figure is a benchmark for the whole material class. Ask for data on the exact construction.
Specify print and protection
Surface printing, reverse printing, screen printing, digital printing, engraving, and overlamination each protect differently against abrasion, chemicals, UV, and cleaning. UL 969 evaluates the label system as a whole: facestock, ink, and overlaminate on specified surfaces. Recognition of one material does not approve every construction.
In practice, liquid UV clear coat is typically applied to screen-printed pieces, while adhesive laminate is common on digital prints. Request documentation for any claim about solvents, washdown, UV, flame, temperature, or abrasion. Don't accept unsupported service-life promises.
Match adhesive to surface
Name the substrate: powder-coated metal, painted steel, stainless, plastic, textured or curved surfaces, or removable panels. Low-surface-energy plastics and textured coatings are the usual trouble spots.
- Specify surface prep and cleanliness
- Note application temperature (3M lists a 50°F minimum for some products)
- Decide permanent versus repositionable
- Request a sample application for difficult surfaces, large labels, or safety-critical placements
The "72-hour" figure on adhesive sheets is typically a peel-test dwell condition, not a mandatory wait before energizing.
Define validation and replacement
Approve a physical proof before production, checking dimensions, color, contrast, adhesion, cut quality, and readability. Where warranted, define evidence for abrasion, chemicals, moisture, UV, and temperature using project-appropriate methods. Plan how damaged or illegible labels get replaced, with revision control so replacements match the current panel.
Design and Place Labels for Safe Use and Maintenance
Choose visible, accessible locations
Place identification and warning labels where the reader can see them without opening equipment unnecessarily. Keep internal labels tied to the right breaker, terminal, wire, or device. Check for obstruction from doors, hinges, handles, conduit, cable bundles, guards, and future modifications.
NEC 110.16(A) requires arc-flash warnings visible to qualified persons before work begins. ANSI Z535.2 guidance also warns against foreseeable obstruction and damage from UV, abrasion, chemicals, and dirt.
Communicate clearly
Use signal words, hazard symbols, contrasting colors, concise wording, and consistent terminology. Add multilingual text where your workforce needs it; OSHA requires understandable messages but gives no general multilingual rule.
Branding is fine only when it never competes with ratings, warnings, or identifiers.
Control installation and maintenance
- Supply application instructions when performance depends on technique
- Record approved location and artwork in project documentation
- Treat labels as support for lockout/tagout, safe-work practices, guarding, and training, never as a replacement
OSHA 1910.147 notes tags lack the physical restraint of a lock and can create a false sense of security.
Turn Requirements into a Supplier-Ready Label Specification

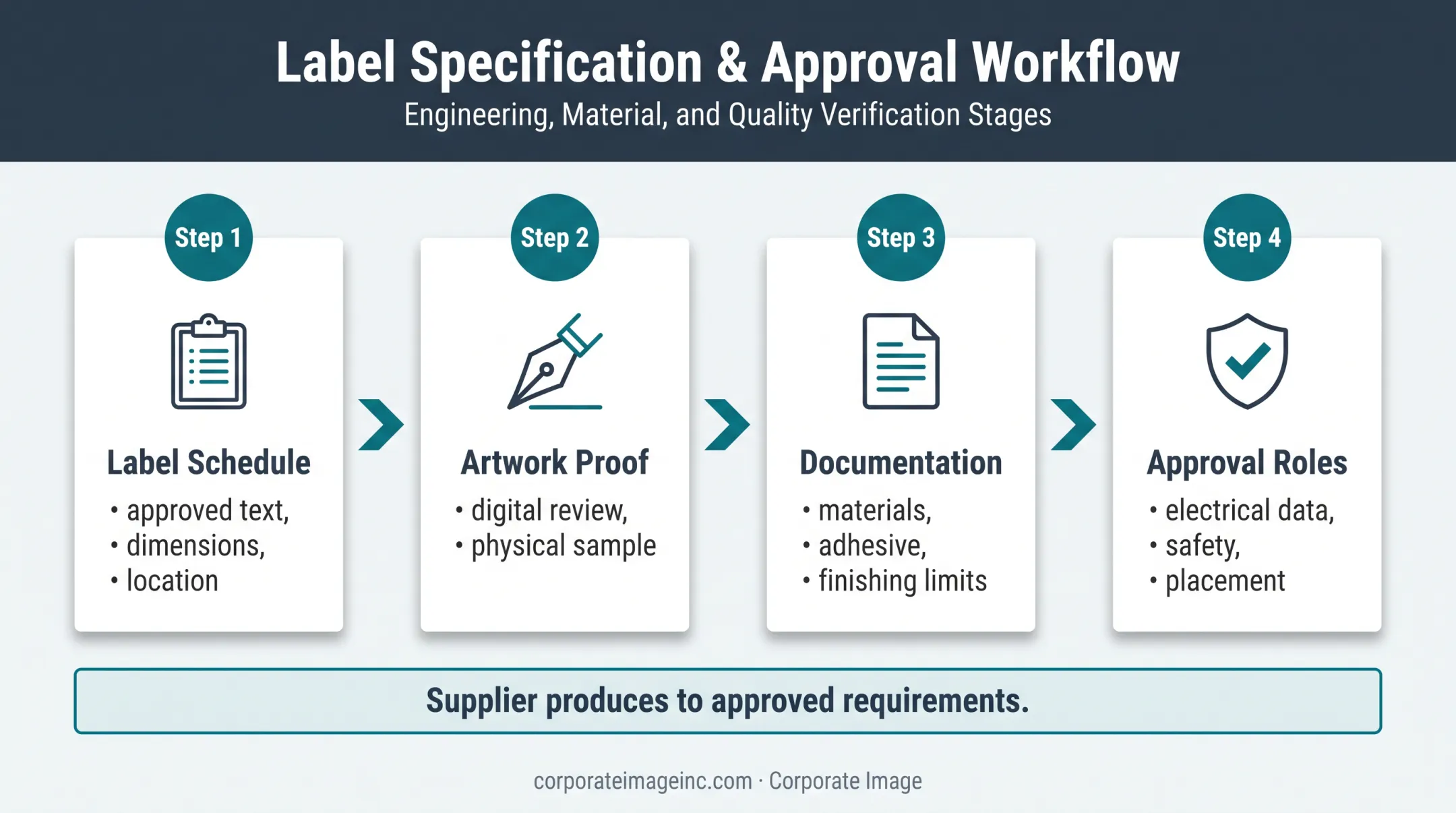

Build the label schedule and artwork package
For each label, provide:
- Unique ID and exact approved text
- Variable data fields
- Dimensions, shape, corner treatment
- Material, adhesive, finish, colors, print method
- Quantity, location, orientation
- Standard or project reference, drawing reference, revision
A fictional example entry:
| Field | Example |
|---|---|
| Label ID | CP-014 |
| Purpose | Panel rating nameplate |
| Text | Approved by panel engineer, per drawing E-102 Rev C |
| Material | Polyester, laminated, per supplier data sheet |
| Surface | Powder-coated steel door |
| Location | Exterior, upper right of door |
| Approver | Panel engineer |
This is an illustration, not a compliance template.
Request proofing and documentation
Review digital artwork first. For critical or difficult applications, approve a physical sample or first article before the production run.
Ask suppliers for:
- Material data and adhesive information
- Finishing details and environmental limits
- Installation instructions
Define who approves electrical data, safety language, artwork, material, and placement. A graphics supplier produces to approved requirements. It doesn't replace the panel engineer, safety professional, or AHJ.
Use a custom graphics partner for durable, consistent production
Corporate Image, a Salt Lake City graphics producer with more than 30 years of experience, makes custom equipment decals and industrial labels from approved artwork. Its work includes caution, warning, and danger decals, instructional labels, and model designations for OEMs.
Relevant strengths for panel projects:
- Screen and digital printing, with liquid UV clear coat on screen-printed pieces
- Factory-direct access to 3M materials
- Experience with difficult surfaces such as low-energy plastics and textured paint
- Support from design through production
- Volume pricing on large quantities
Corporate Image does not provide UL listing, calculate electrical ratings, or certify regulatory compliance. Those stay with your engineers and the AHJ.
Before ordering, call 801-485-0103 to discuss your label schedule, material requirements, artwork, samples, and production needs.
Frequently Asked Questions
What are the 3 UL industrial control panel labels?
UL describes three NITW identities for industrial control panels: enclosed panel, open panel, and enclosure-only. SCCR, ratings, and manufacturer data are additional markings, not a third listing label.
What are the OSHA requirements for electrical panel labels?
OSHA focuses on durable, readable, accurate marking and protection from electrical hazards (1910.303, 1910.145). Confirm current provisions, state-plan rules, and workplace procedures with a qualified safety reviewer.
What is the NEC code for labeling electrical panels?
No single section covers every panel. Check 409.110, 110.21(B), 110.22, and 110.16 in your adopted edition, plus AHJ expectations.
What information should be included on an industrial control panel label?
Include manufacturer, supply voltage, phase, frequency, full-load current, SCCR, enclosure type, wiring-diagram reference, circuit IDs, warnings, arc-flash data where applicable, and revision.
How do you choose a durable material for control panel labels?
Weigh UV, moisture, chemicals, abrasion, temperature, cleaning, touch, substrate, and adhesive against service life. Confirm with supplier data or a sample application on the actual surface.
