Pick wrong, and the cost shows up later. 3M's fleet cost guidance ties fading, peeling, lifting and cracking to replacement costs and operational interruptions. No one publishes a reliable dollar figure for wrong-material mistakes, but the pattern is familiar to anyone who has re-ordered a failed label.
This guide compares the two on composition, durability, appearance, installation, surfaces, exposure, lifecycle cost and best-fit uses.
Key Takeaways
- Mylar usually means polyester (PET) film; vinyl decals are typically PVC film.
- Grade, adhesive, laminate, and print method decide real performance.
- Vinyl covers vehicles, windows, walls, and buildings; polyester suits thin, detailed labels.
- Compare lifecycle cost, not just film price.
Mylar vs Vinyl Decals: Quick Comparison
| Factor | Mylar (polyester) | Vinyl (PVC) |
|---|---|---|
| Construction | PET film, clear or white, often printed and laminated | PVC film: cast, calendered, reflective, translucent |
| Cost | Varies by grade, thickness, print method, laminate | Varies by grade, adhesive, finish, quantity |
| Durability | Product-specific; check test data | Product-specific; "vinyl" alone guarantees nothing |
| Appearance | Thin, fine detail, possible visible edges | Wide range of opaque, clear, gloss, matte options |
| Best fit | Equipment labels, rating plates, facility safety signs | Fleets, windows, walls, buildings, wayfinding |
Cost and lifecycle
Neither material is reliably cheaper. Price swings with film grade, adhesive, finish, laminate and quantity. Compare full quotes, then add installation, cleaning, removal and replacement.
3M's cost breakdown lists design, printing, converting, installation labor and removal as separate drivers. Hard-to-remove films can add unplanned labor when you rebrand.
Durability benchmarks

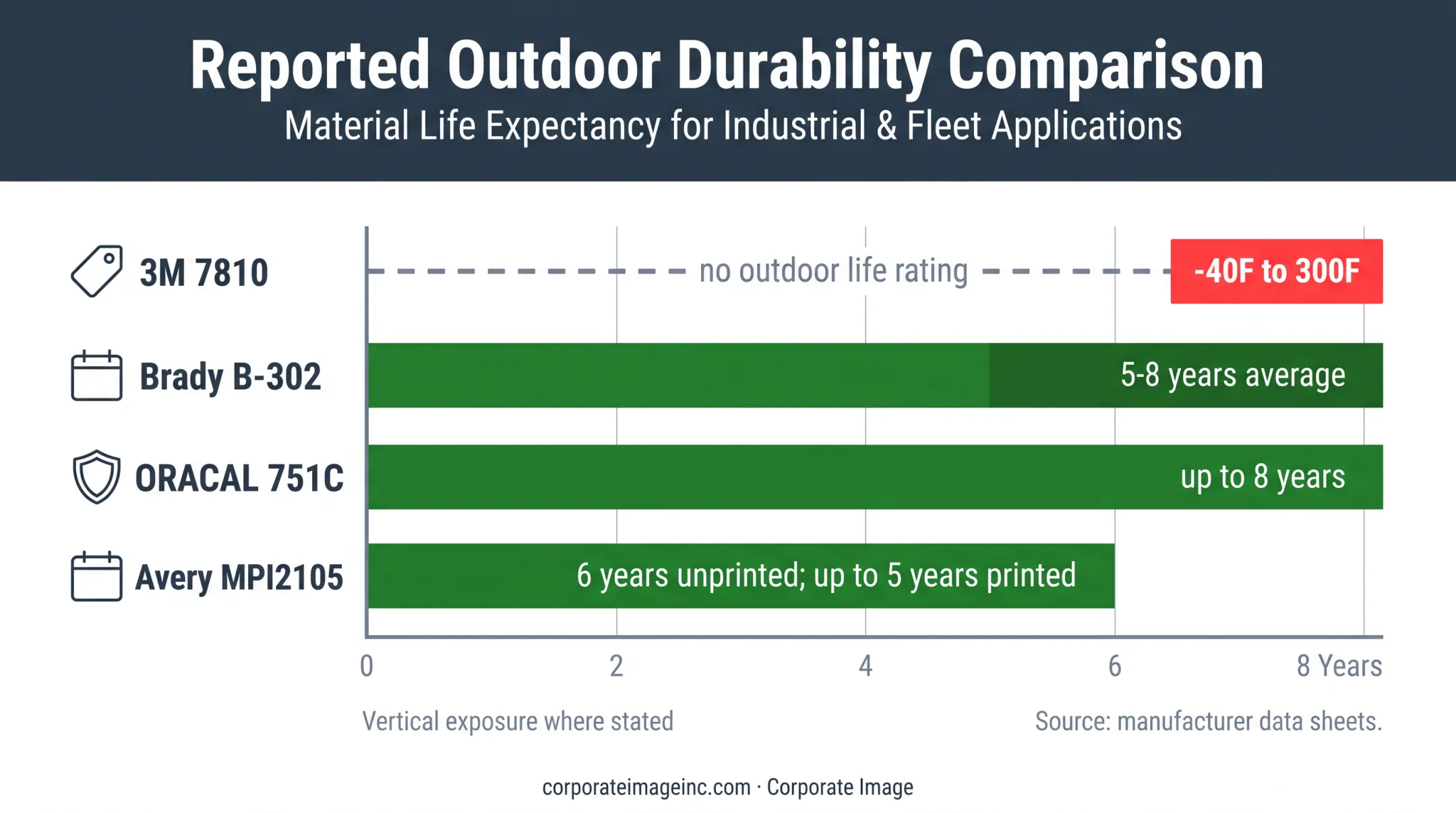

Manufacturer data sheets show how different the numbers are. These are different constructions and test methods, not a head-to-head study.
| Product | Reported evidence |
|---|---|
| 3M 7810 polyester | Long-term -40°F to 300°F; high chemical and abrasion resistance; no outdoor life rating |
| Brady B-302 polyester with laminate | 5-8 years average outdoor durability, depending on climate |
| ORACAL 751C cast PVC | Up to 8 years vertical exposure (Zone 1, black/white) |
| Avery MPI2105 calendered vinyl | 6 years unprinted, up to 5 years printed, vertical exposure |
Typical values are not guarantees. Orientation matters too: 3M's 2080 wrap warranty covers 8 years vertical but only 3 horizontal in its mildest zone.
What Is Mylar?
Mylar is a trademarked brand of PET polyester film. In decals, the word usually stands in for any polyester-film label or decal. Brady, for example, describes its B-423 and B-302 products as polyester, not Mylar-branded. Packaging film and bare sheets are different products from adhesive decal film.
Benefits
Polyester film is chemically resistant, thermally stable, dimensionally stable and stiff, according to Mylar Specialty Films. Those are base-film traits, not lifetime promises for a finished label. In testing, Brady's B-423 showed no visible change after 30 days of UV and xenon weathering, and its print stayed legible after 100 abrasion cycles.
Limits
- Stiffness limits conformability on curves, rivets and recesses
- Edges can be visible on some finishes
- Air can get trapped on larger pieces
- Print can fail even when the film holds: acetone removed print and topcoat from B-423 labels after rubbing
Variations that affect performance
Clear or white film, printed or cut graphics, permanent or removable adhesive, protective laminate and thickness all shift performance. A 2 mil label and a 6-10 mil laminated one are different products.
Use Cases of Mylar
Polyester fits equipment identification, rating plates, barcodes, control-panel graphics, safety instructions and facility signs. Brady lists safety signs, fire-extinguisher marking and emergency exits for B-302.
Before choosing it, test against your own conditions:
- Substrate and surface energy
- Cleaning chemicals and solvents
- Abrasion and handling
- Temperature swings
- Sunlight and moisture
- Required service life
For safety labels, standards matter too. UL 969 evaluates the whole system (stock, ink, laminate, surface and environment) rather than mandating one polymer. ANSI Z535.4 covers product safety label design and placement.
Polyester performance depends on the full construction, so confirm film, adhesive, ink and laminate against the product data sheet before committing.
What Is Vinyl?
Vinyl decals are adhesive graphics cut or printed on PVC film. The term covers very different grades:
- Cast PVC: conforms to compound curves. 3M's IJ180mC is built for deep channels and recesses
- Calendered vinyl: suits flat or simple curves; complex curves can lift
- Reflective PVC: retroreflective film for flat, curved or corrugated surfaces, including rivets
- Translucent cast vinyl: for illuminated sign faces, awnings and glass
Benefits include:
- Flexes and conforms; available in large-format rolls and many colors and finishes
- Adhesive and laminate can be paired to the surface and exposure
- Reflective grades keep law-enforcement and industrial vehicles, hard hats and hazard markings visible in low light
Those strengths come with trade-offs you should plan around.
Limits to plan for:
- Grades vary widely, so "vinyl" says little about outdoor life
- Fading and shrinkage appear in lower grades or poor prints
- Permanent adhesives make removal harder
- Low-energy plastics and textured paint need verified adhesion
Corporate Image flags those difficult substrates in its industrial decal work and uses specialized 3M materials for porous, low-adhesion, plastic and glossy surfaces.
Material is only part of the result. 3M notes that incomplete ink drying can cause curling, shrinkage and adhesion failure. Surfaces must be clean and dry.

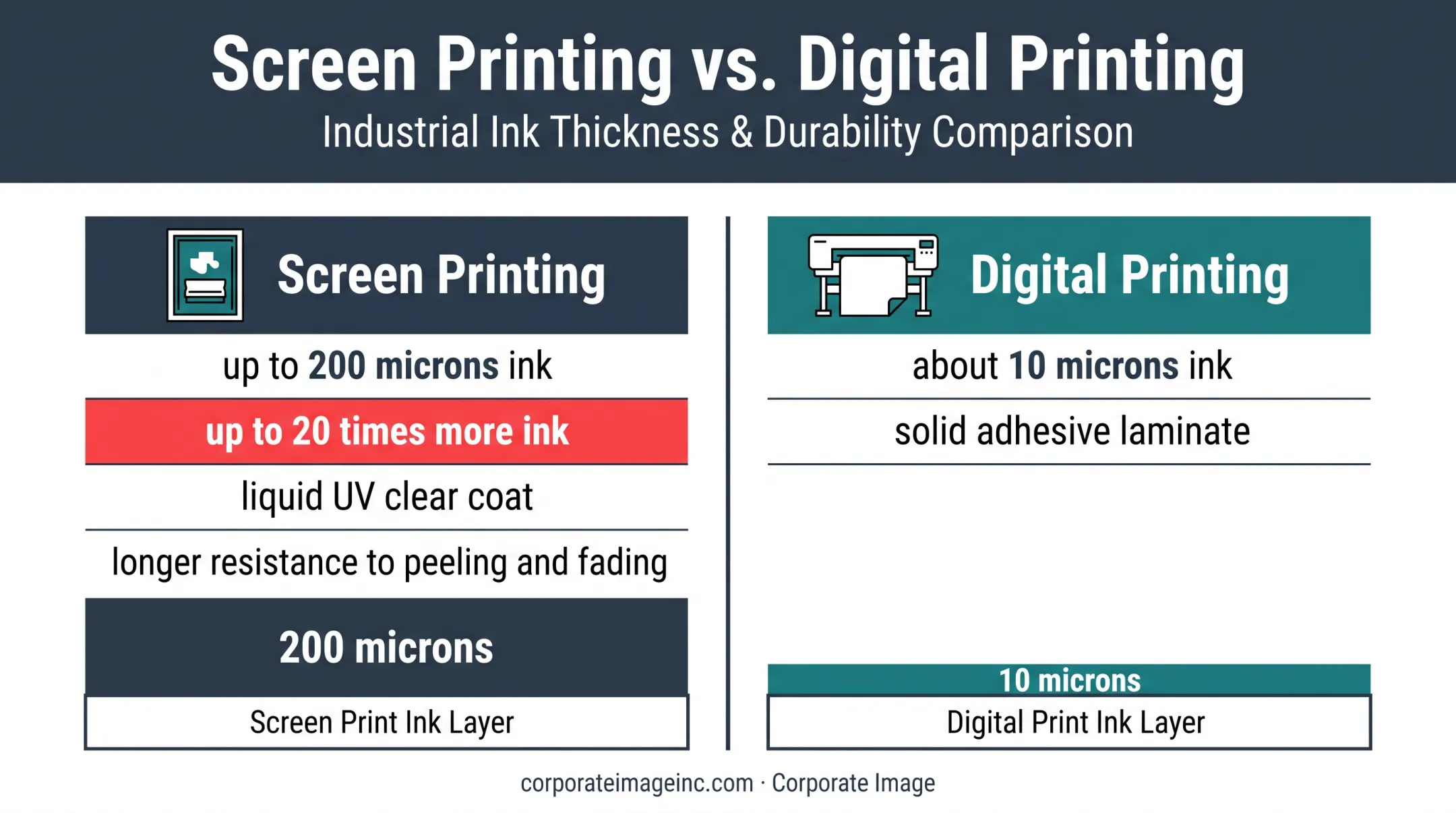

Print method counts as well: screen-printed graphics deposit up to 20 times more ink than digital (200 microns versus 10), per Corporate Image's fleet graphics research. A liquid UV clear coat on screen prints resists peeling and fading longer than solid adhesive laminate.
Typical vinyl applications:
- Fleet trucks, vans, buses and trailers
- Storefront windows and interior walls
- Building exteriors, including brick
- Wayfinding and resort signage
- Event and promotional graphics
Choose cast or specialty vinyl for curves, rivets and long-term outdoor branding. Lower-cost calendered or removable grades fit flat surfaces and shorter campaigns.
Fleet graphics also pay for themselves in exposure. The American Trucking Association reports that more than 90% of drivers notice advertising on trucks, and trailer graphics averaged $1,500 for 16 million annual impressions.
Mylar vs Vinyl Decals: What Is Better?
Neither wins outright. Start with the project, then pick the film.
Decision framework
Work through these questions:
- What is the surface: metal, glass, painted, low-energy plastic, textured?
- Indoors or outdoors, vertical or horizontal?
- How much sun, moisture, chemicals, abrasion and temperature swing?
- How large is the graphic, and does it wrap contours?
- How long must it last, and must it come off cleanly?
- How many units, and who installs them?
When to choose each
Choose polyester (commonly sold as Mylar) when a verified construction meets your needs for thinness, fine detail, label format and dimensional stability, such as equipment labels or rating plates. Never choose it on the name alone.
Choose vinyl for vehicles, windows, walls, buildings and fleets. Match the grade, adhesive and laminate to the substrate and exposure.
Lifecycle cost
Count every stage:
- Artwork, printing and finishing
- Installation, cleaning and removal
- Replacement, rebranding and downtime

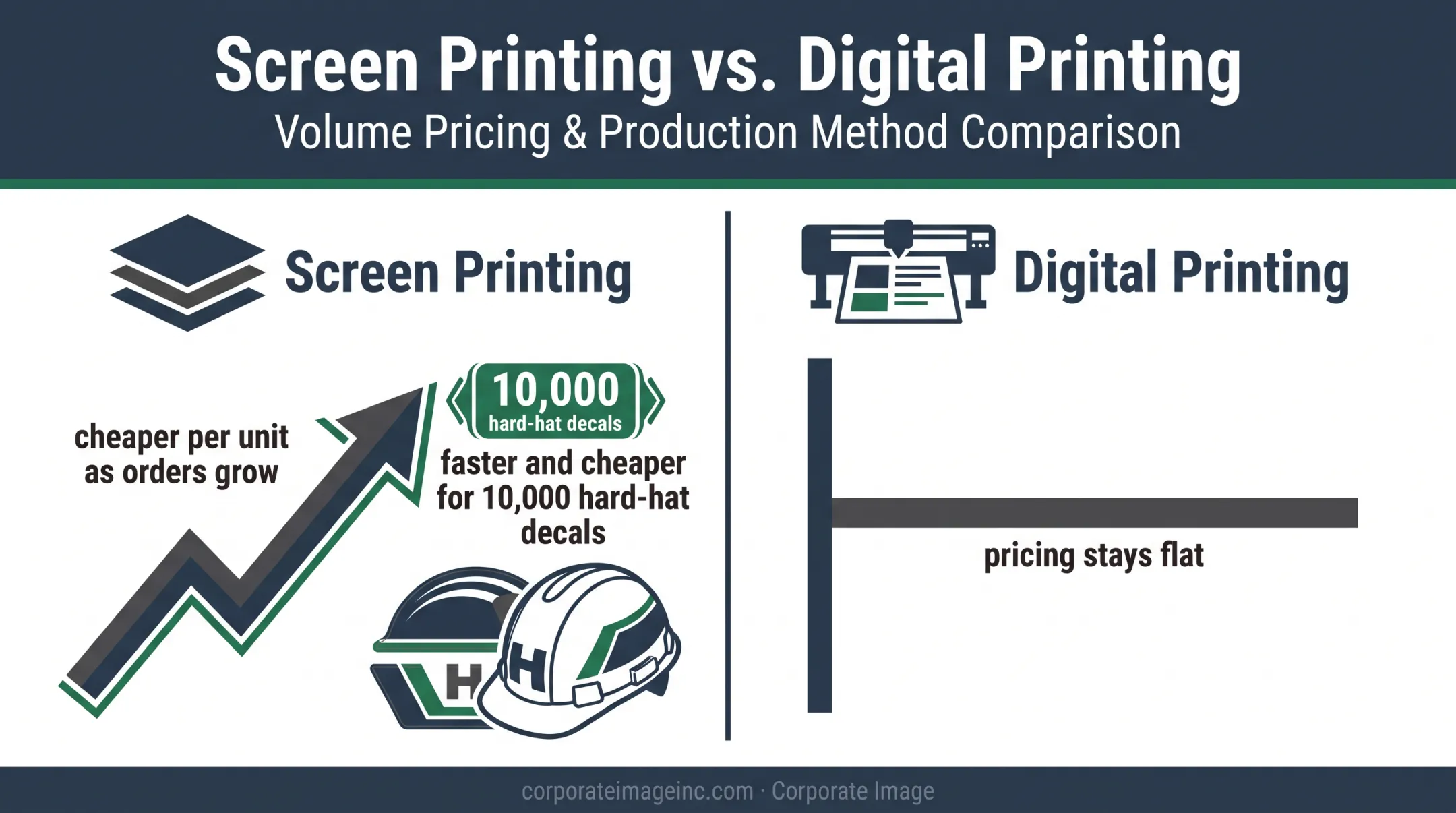

Quantity matters as well. Screen printing gets cheaper per unit as orders grow, while digital pricing stays flat. For 10,000 hard-hat decals, Corporate Image finds screen printing faster and cheaper.
When to hire professionals
Bring in installers for:
- Large graphics, vehicles and windows
- Textured surfaces and difficult substrates
- Multi-site rollouts where alignment affects the brand
ORAFOL restricts application and removal of its digital printing films to trained specialists, and 3M runs certified installer programs.
Real World Examples and Case Studies
Mericle's property-management fleet
Avery Dennison published a 2020 case study of Mericle Commercial Real Estate Services. The company wanted its property-management vans to stand out and be recognized.
The installer used MPI1105 cast film with DOL 1360 and DOL 1060 laminates, wrapping vehicles and applying decals. Mericle reported greater visibility, and tenants recognized the vans and valued the added security.
This manufacturer-published case study does not include measured service life, labor savings or ROI. It also leaves the adhesive and installation method unspecified.
Takeaway
The lesson is matching the material to the job. The goal here was visibility and visual consistency across vehicles, so conformable cast vinyl with a protective laminate fit. A fine-print equipment label would call for a different answer.
Corporate Image helps commercial teams with material selection, design, production and 3M-certified installation, from fleets to resort signage to building graphics. Bring your surface and exposure details and ask for a project-specific recommendation.
Conclusion
Mylar and vinyl are not interchangeable. The better choice depends on verified specification, adhesive, surface, environment, appearance, service life, and installation.
A properly matched decal delivers durable branding, legible equipment information, fewer replacements, and smoother rollouts. Request a recommendation for your project rather than choosing by price or material name alone.
Frequently Asked Questions
What is the difference between mylar and vinyl?
Mylar commonly refers to polyester (PET) film, while vinyl generally means PVC film. Performance depends on the specific film, adhesive, laminate and application.
What is the best material for decals?
It depends on the surface, indoor or outdoor exposure, service life, appearance, removability and installation needs. No single material wins every case.
What is the main difference between vinyl decals and vinyl stickers?
The terms overlap. "Decal" often implies a graphic made for transfer or more substantial surface application, while "sticker" is broader. Construction and intended use matter more than the label.
Are Mylar decals more durable than vinyl decals?
Durability depends on the film grade, adhesive, laminate, exposure and surface. Check manufacturer specifications instead of assuming one material is tougher.
Can vinyl decals be used for outdoor commercial applications?
Yes, if specified for it. Properly selected outdoor vinyl suits vehicles, windows and buildings, provided the UV rating, adhesive, laminate and installation fit the conditions.
Which material is best for industrial equipment labels?
Evaluate chemicals, abrasion, heat, moisture, cleaning procedures, substrate, legibility and service life first. Then choose between qualified polyester or vinyl constructions.
