This guide is for commercial graphics buyers and production teams weighing decals, labels, signs, panels, and branded surfaces where color, durability, and repeatability matter. The term "full-color" gets used loosely. It often blurs together four-color process, spot color, simulated process, and digital printing.
Below, we cover how the process works, where it fits, what affects results, and when another method is the smarter call.
Key Takeaways
- Four-color process uses CMYK inks and halftone dots to create the impression of many colors.
- Results depend on separations, screens, registration, ink, substrate, and production control.
- It suits photographic or tonal graphics, but not always exact brand colors or variable data.
- Test the substrate, environment, quantity, and durability needs before choosing the process.
What Is Four-Color Process Screen Printing?
Four-color process screen printing reproduces full-color graphics by separating the image into cyan, magenta, yellow, and black (CMYK) channels. Each channel is printed through its own screen, one layer at a time.
Each layer is made of tiny halftone dots. Printed at different angles and overprinted, the dots blend visually at normal viewing distance. The eye reads smooth tones and a broad range of colors. Pantone's color guide describes process color as the right fit for photographs, paintings, and complex multicolor imagery.
How It Differs From Related Methods
- Spot color: individually mixed solid inks, one per color.
- Simulated process: spot colors combined with halftones to blend a broader range.
- Digital printing: direct output to the substrate, with no separate screen-based ink layers.
"Full-color" describes how a graphic looks. It does not tell you how it was made.
Why Four-Color Process Is Used and Where It Applies
Photographs, gradients, and illustrations with many tonal colors would need dozens of solid inks if printed as spot colors. Process color handles them with four.
Screen printing also suits commercial work for practical reasons. The process deposits far more ink than digital, which supports durability and long-term vibrancy. It also produces matching pieces in volume. A run of 10,000 hard-hat decals, for example, is typically faster and cheaper by screen than by digital.
Applications to Evaluate
- Equipment decals and labels
- Branded panels
- Point-of-sale and interior graphics
- Promotional graphics
- Selected fleet or facility graphics
Suitability depends on material and exposure. Nazdar's 2600 UV-LED screen ink, for example, offers halftone cyan, magenta, yellow, and black for substrates such as:
- Styrene and static-cling PVC
- Treated polyolefins
- PET-family films
- Coated paper
Acrylic and some vinyls may have limited adhesion, so each run needs testing.

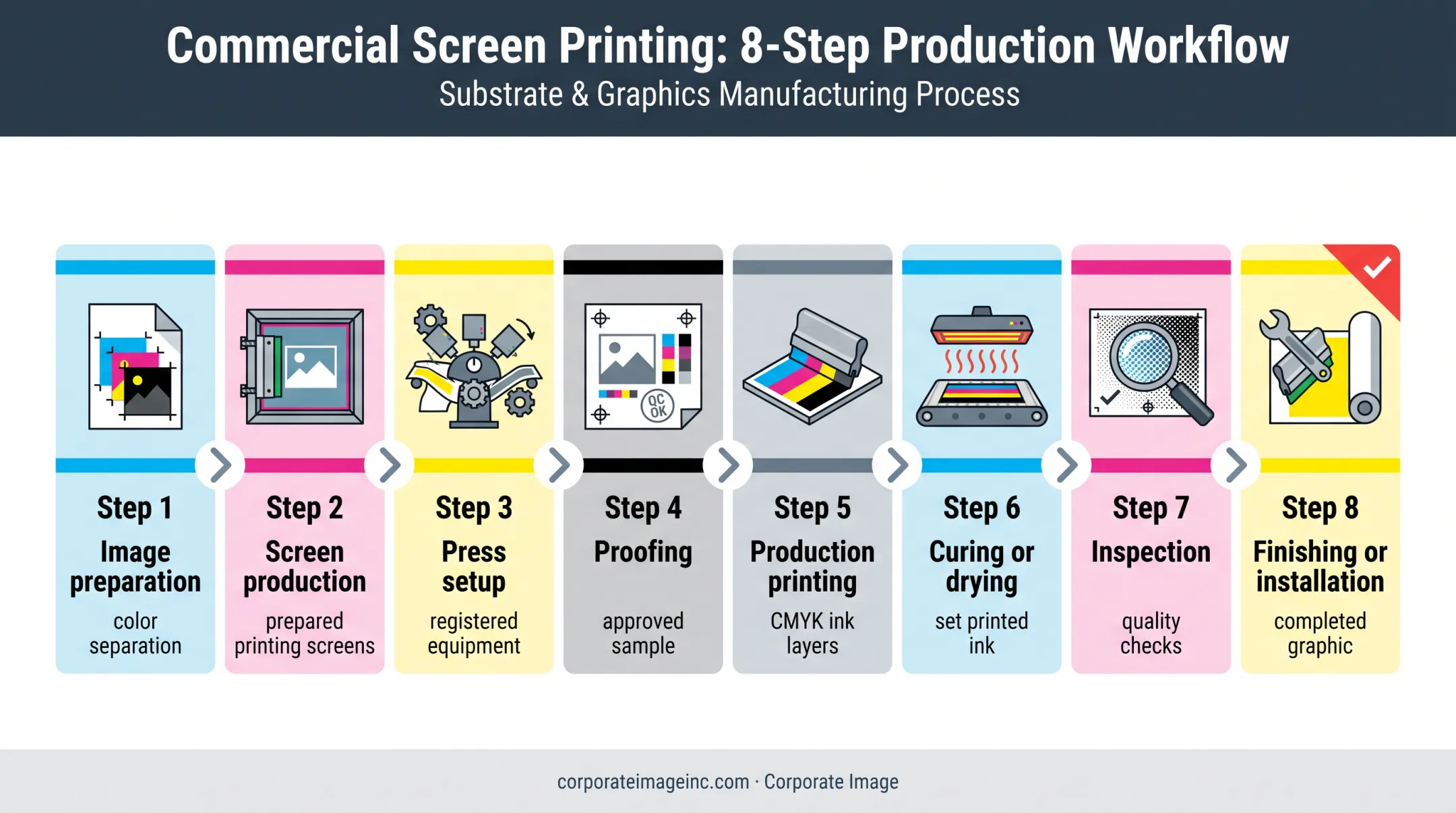

Where It Sits in the Workflow
- Image preparation and color separation
- Screen production
- Press setup
- Proofing
- Production printing
- Curing or drying
- Inspection
- Finishing or installation
A Practical Decision Point
Corporate Image is a full-service provider in Salt Lake City that coordinates design, printing, custom graphics, and professional installation by 3M-certified installers. Whether a given project belongs on four-color process or another method is a call to make with the production team after reviewing the artwork, surface, and environment.
How Four-Color Process Screen Printing Works
The source image becomes four color separations, then four prepared screens, then registered ink layers, then a finished graphic. Each stage affects the next.
Step 1: Prepare the Artwork and Separations
Start with a high-resolution file converted to CMYK. Converting from RGB can shift colors, so review the result before production.
Resolution needs vary by printer. Gill-Line asks for at least 300 dpi at final size, while Stouse asks for 600 dpi at 100% size for process work. Confirm formats and resolution with your provider first.
Each channel then becomes a halftone pattern. Frequency, angle, dot shape, and tonal range all matter:
- Different angles per color reduce moiré.
- Elliptical dots are often recommended for screen work.
- Settings must match the mesh, ink, press, substrate, and software, not a universal recipe.
Step 2: Prepare the Screens and Press
Each separation exposes a matching screen, either from film positives or computer-to-screen. Quality depends on suitable mesh, emulsion, clean stencil openings, and consistent tension.
Tension matters most across all four screens. 3M's production guidance calls for uniform tension in both directions and across the set, which is critical for matched panels. Mesh specs are system-specific. 3M lists 355-390 threads per inch for its inks, while Nazdar 2600 lists 355-420.
On press, the substrate must sit in the same position every time. Squeegee pressure, stroke, off-contact distance, ink viscosity, and screen alignment all influence dot transfer and overlap.
Step 3: Print, Cure, and Inspect
3M's bulletin generally recommends printing yellow, magenta, cyan, then black. That is one system's guidance, not a rule for every job. The goal is controlled deposits so the colors blend without buildup or muddiness.
Production checks include:
- Approved proof or progressives with density matched in production
- Registration, color balance, missing dots, banding, and smearing
- Substrate distortion
- Cure, abrasion resistance, and tape-snap adhesion on every print pass
Key Factors That Affect Results and Common Issues

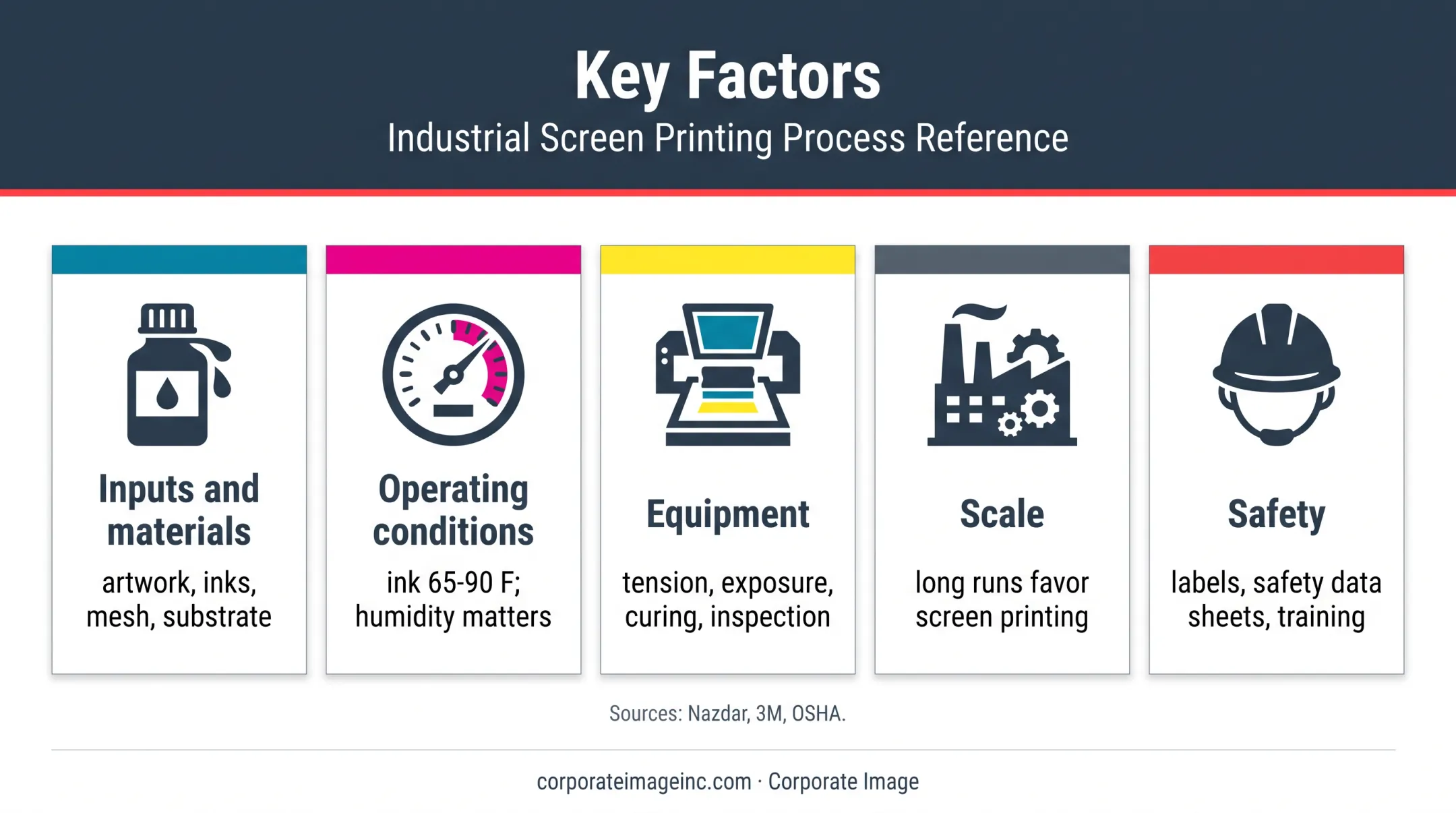

Key Factors
Inputs and materials. Artwork, color profile, separation software, process inks, emulsion, mesh, substrate, coatings, and finishing materials must work together. Follow the manufacturer's guidance for the selected system.
Operating conditions. Temperature and humidity change results. Nazdar recommends keeping ink at 65-90°F, since colder ink thickens and hotter ink loses definition. 3M notes that humidity and temperature can destabilize liner stock and distort sheets.
Equipment. Screen tension, mesh, exposure quality, press repeatability, curing equipment, and inspection tools all depend on each other. No single mesh count or squeegee spec is universal.
Scale. Long runs and repeat orders favor screen printing, because setup costs spread across many pieces. Small one-time jobs usually cost less with digital printing.
Safety. OSHA's hazard communication rule requires labeling, safety data sheets, and training for hazardous chemicals. Include ventilation, appropriate PPE, cure verification, substrate testing, and documented color approval.
Common Mistakes and Misconceptions
- Submitting RGB artwork without reviewing the CMYK conversion
- Assuming four inks reproduce every visible color
- Ignoring the substrate's base color
- Treating registration as a minor setup detail
| Symptom | Where to look |
|---|---|
| Muddy color | Deposit, ink order, proof density |
| Misregistration | Tension, substrate stability, setup |
| Poor adhesion | Substrate compatibility, cure |
| Proof-to-print shift | CMYK conversion, gamut limits |
No single cause explains any of these. Work through the list and test.
When Four-Color Process May Not Be Appropriate

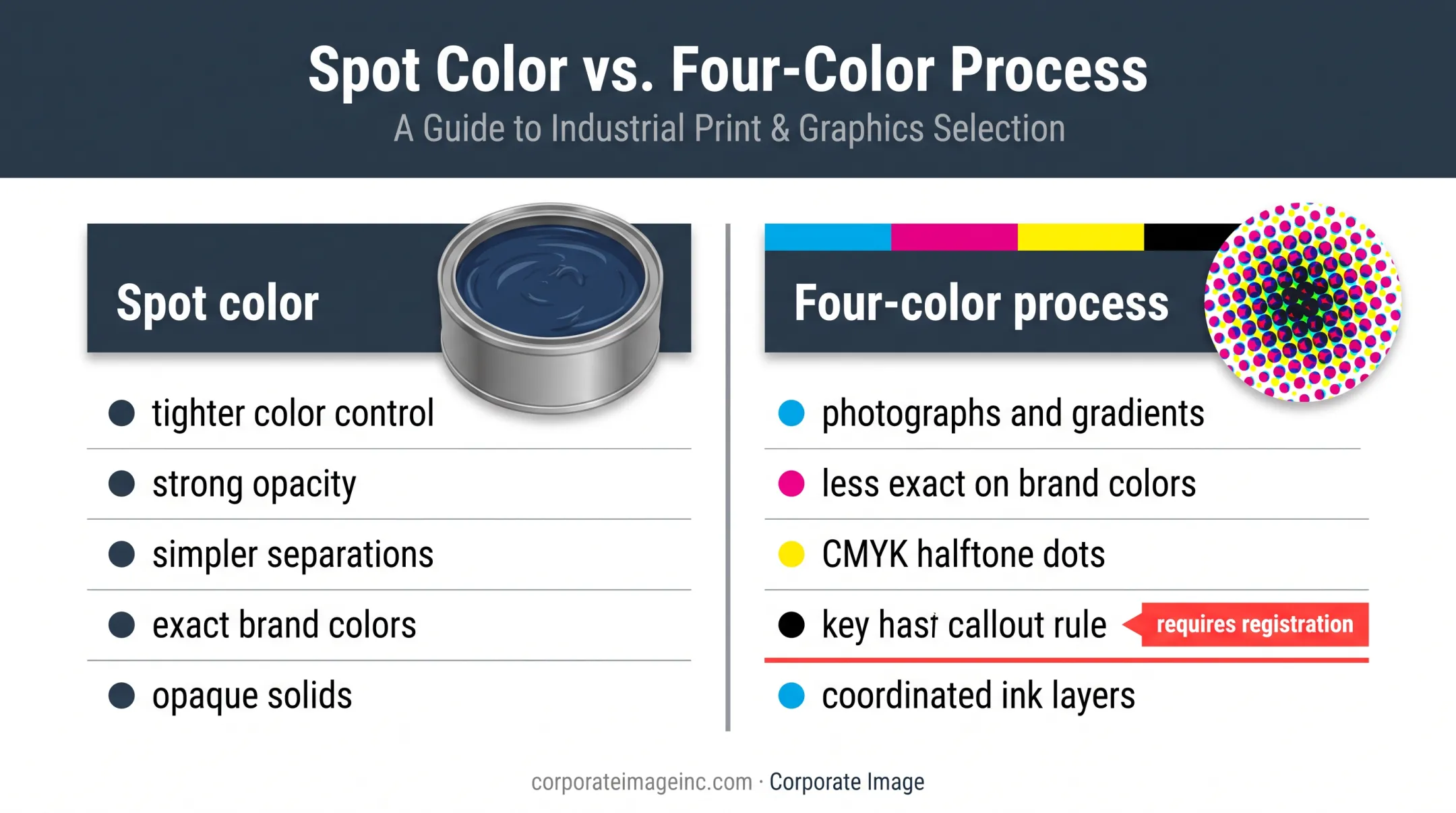

Spot Color Is Often Better
Logos, solid brand colors, fine text, and sharp vector art usually belong on spot color. Pantone notes some spot colors fall outside the CMYK gamut. Hand-mixed inks, which Corporate Image uses, can match exact colors. Translucent inks let 3M Scotchlite reflective materials show bright color at night.
- Spot color: tighter color control, strong opacity, simpler separations
- Four-color process: better for photographs and gradients, less exact on brand colors
Digital or Other Methods
Digital printing typically fits short runs, prototypes, and variable data. Texas Nameplate lists these as digital strengths.
Clear or dark surfaces may need a white backing, which adds a color. Large size alone, however, is not a reason to reject screen printing.
Warning Signs of a Default Choice
- No substrate test
- No approved proof
- Unclear durability requirements
- An unsuitable surface texture
- Exact spot-color matching never evaluated
Conclusion
Four-color process screen printing builds a full-color image from coordinated CMYK separations, halftone screens, controlled ink deposits, accurate registration, and proper curing.
The substrate, environment, artwork, color expectations, volume, and installation needs matter more than the phrase "full-color." Commercial teams can talk through those questions with a qualified provider such as Corporate Image, which handles design, production, durable graphics, and installation.
Frequently Asked Questions
Is the 4 color process the same as full-color?
No. Four-color process is one common way to get a full-color look. Full-color is broader and also covers digital, spot-color combinations, and simulated process.
What does 4 color printing mean?
It means printing with cyan, magenta, yellow, and black inks. Halftone dots and overlapping layers blend to create the appearance of many colors.
What are the four main printing processes?
The phrase has no single classification. For commercial graphics, the methods worth comparing are four-color process, spot color, simulated process, and digital printing.
Is four-color process screen printing suitable for commercial graphics?
It can be, for photographic or tonal graphics on compatible substrates. Consider surface, exposure, durability, color requirements, quantity, and finishing.
How does four-color process compare with spot color printing?
Process blends CMYK halftone dots, which suits photographs. Spot color uses individually mixed solid inks, which suits exact brand colors and opaque solids.
What artwork files are needed?
Provide a high-quality source file prepared for CMYK separation. Confirm file format, resolution, color profile, bleed, and proofing requirements with your printer before production.
