Introduction
Commercial kitchens carry a fire risk that standard extinguishers don't address. Heated cooking oils and fats behave differently from paper, wood, or typical flammable liquids. In NFPA's 2010-2014 study, cooking equipment was involved in 61% of fires in eating and drinking establishments.
A missing, faded, greasy, or blocked Class K sign slows that response. Staff can't find the right extinguisher quickly, and an inspector may flag it.
This guide covers what Class K signage communicates, when it may be required, how to place and maintain it, and how a location sign differs from an instructional placard.
Key Takeaways
- Class K identifies equipment for cooking-oil, fat, and grease fires in commercial kitchens.
- Sign requirements depend on visibility, the adopted fire code, and local interpretation.
- Effective signs are legible, durable, visible from approach routes, and never blocked.
- A sign supports recognition. It doesn't replace the extinguisher, hood system, or training.
What Is a Class K Fire Extinguisher Sign?
What the Class K designation means
Class K covers fires in cooking appliances involving combustible cooking media, such as vegetable oils and animal fats. NFPA 10 classifies extinguishers for these fires.
Class K units typically use a wet chemical agent. NFPA explains that the agent reacts with hot oil or fat to form a soapy layer that smothers the fire, a process called saponification.

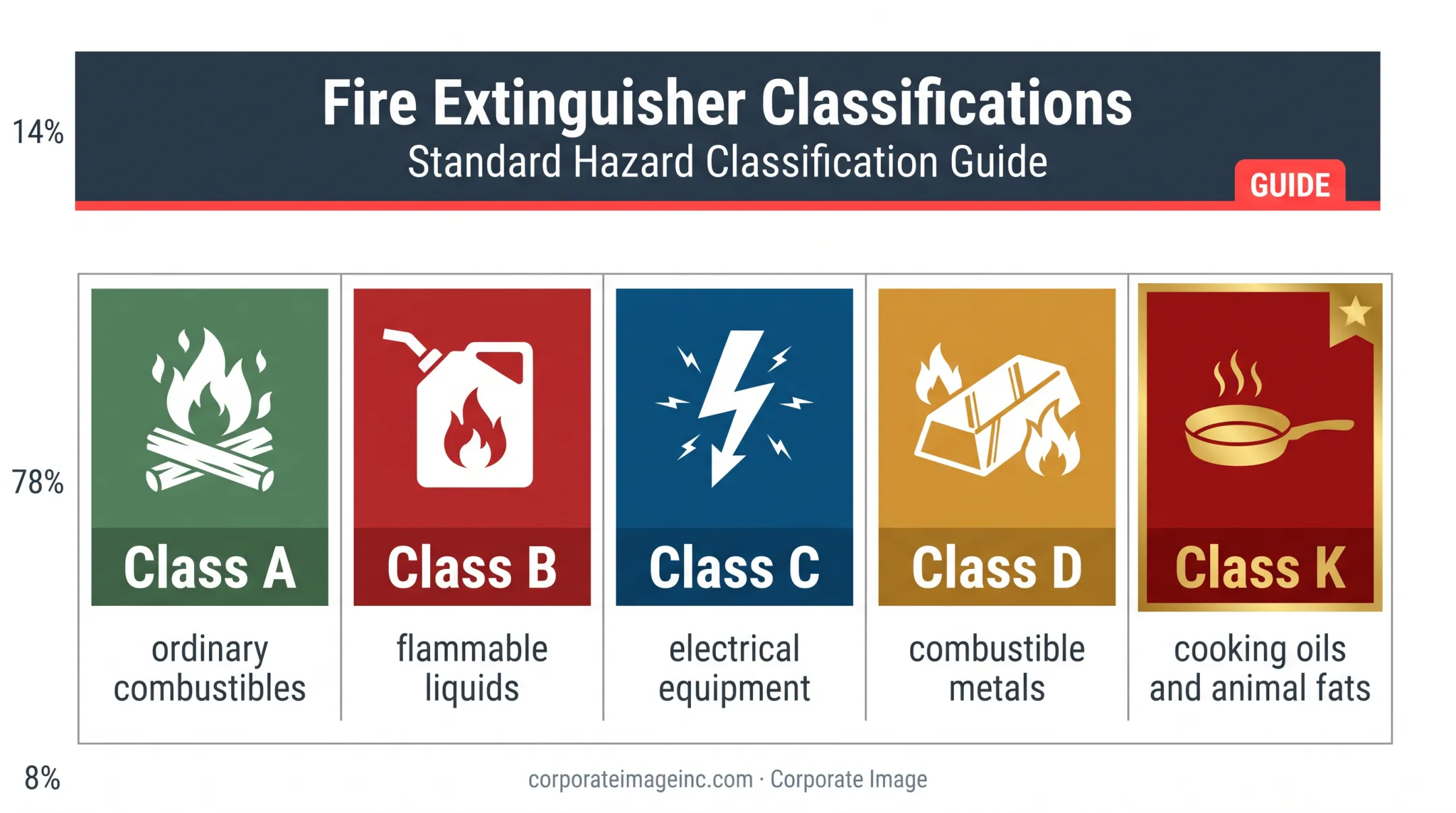

A Class K sign shouldn't be confused with signs for ordinary combustibles (A), flammable liquids (B), electrical equipment (C), or combustible metals (D).
Three items that get mixed up
| Item | What it does |
|---|---|
| Location sign | Shows where the extinguisher is when it can't be seen |
| Classification marking | Pictograms on the extinguisher showing which fires it suits |
| Suppression-system placard | Tells staff to activate the hood system before using the portable unit |
The classification belongs to the extinguisher, not the wall sign. A sign is not a fire rating.
Why the symbol matters
A simple, high-contrast symbol helps employees find the right station fast. It doesn't replace the operating instructions or training.
Artwork details (letter, pictogram, color, shape) can vary between manufacturers and NFPA editions. Check your extinguisher's label and the current NFPA 10 text rather than assuming one universal design.
Who typically needs Class K signage
The trigger is the cooking hazard, not the business name. Common examples:
- Restaurants and cafeterias with fryers or grills
- Institutional and hospitality kitchens
- Food-production areas
- Mobile food operations, where NFPA's food-truck guidance points to local requirements
Not every institution automatically has identical requirements, so confirm the actual equipment and hazard.
What Are the U.S. Requirements for Class K Fire Extinguisher Signs?
Which standards and authorities apply
Three layers matter:
- OSHA: 29 CFR 1910.157 requires extinguishers to be mounted, located, and identified so employees can reach them without injury. It sets no Class K sign artwork, size, or height rules, and requires monthly visual inspections plus annual maintenance.
- NFPA: NFPA 10 covers portable extinguishers, NFPA 96 covers commercial cooking operations, and NFPA 17A covers wet chemical systems. The latest published editions are not automatically enforceable in every jurisdiction.
- Local fire code: The 2024 International Fire Code (IFC) is one model code. Each jurisdiction adopts its own edition and amendments.
The fire marshal or other authority having jurisdiction (AHJ) has the final say. Ask which code edition applies before you order anything.
When a sign or other identification may be needed
An obvious, accessible extinguisher may be treated differently from one in a cabinet, a recess, behind equipment, or around a corner. Under IFC 906.6, extinguishers must not be obstructed or obscured, and unavoidable visual obstruction requires a means of indicating their location.
Layout changes matter too. Hood systems, partitions, storage racks, renovations, and tenant improvements can make an existing sign inadequate overnight.
Location signs versus suppression-system placards

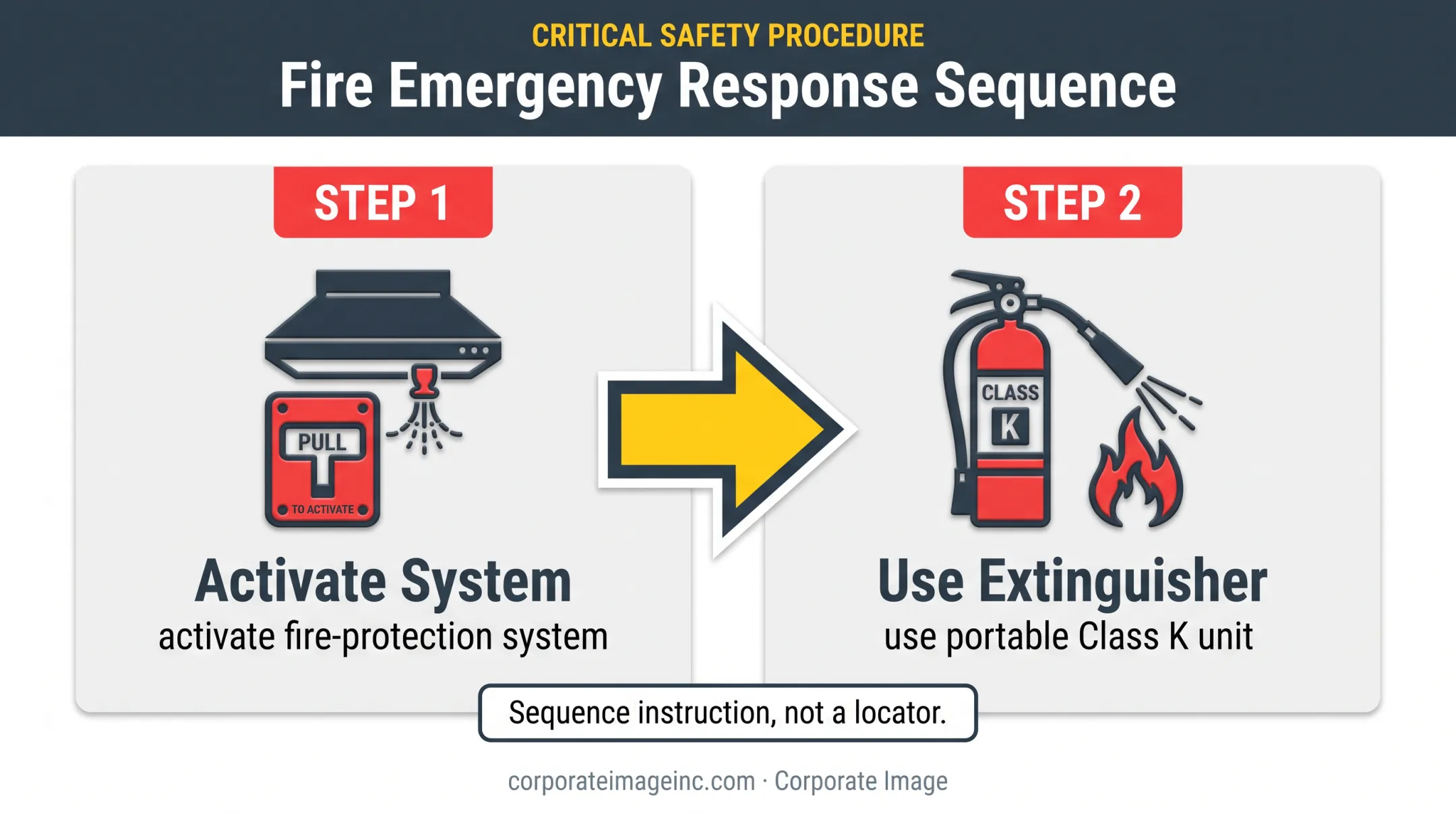

NFPA's restaurant guidance says a placard must be conspicuously near each Class K extinguisher, stating that the fire-protection system must be activated before the portable extinguisher is used.
That's a sequence instruction, not a locator. A location-only sign doesn't satisfy it. Exact wording and placement vary by edition and jurisdiction, so don't assume one universal message for every kitchen.
Compliance review checklist
- Correct Class K identification on the extinguisher and sign
- Unobstructed sightlines to both
- Legible lettering and sufficient contrast
- Material suited to a kitchen, mounted securely
- Suppression-system placard present where required
- Local requirements confirmed with the AHJ

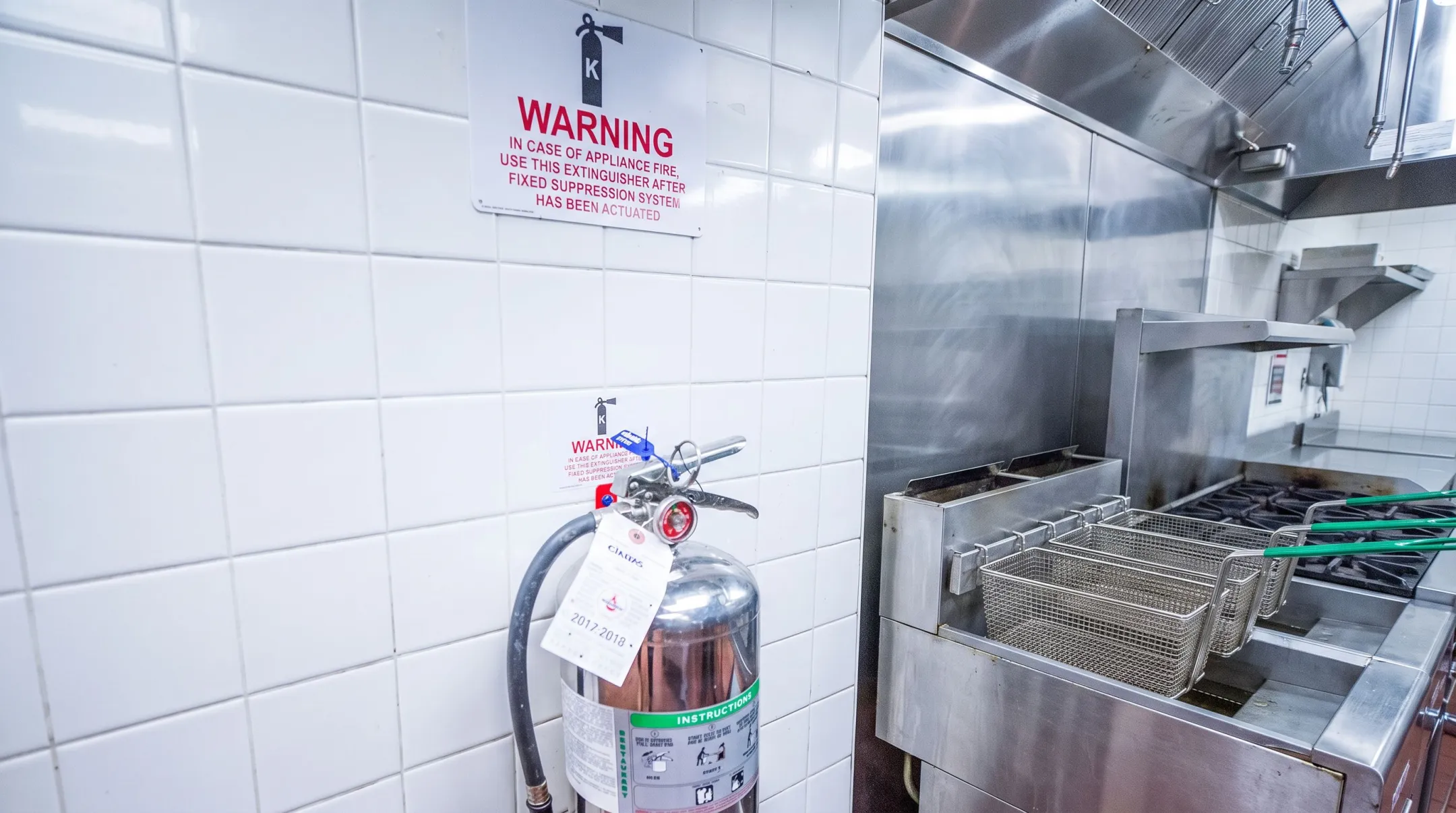

Where Should Class K Fire Extinguisher Signs Be Placed?
Position the sign so it leads to the extinguisher
The sign must clearly correspond to the actual Class K unit. Follow the approved layout, not a general "somewhere in the kitchen" approach.
Don't confuse extinguisher mounting dimensions with sign height. IFC 906.9 sets the extinguisher top at no more than 5 ft above the floor for units of 40 lb or less, with at least 4 in. of bottom clearance.
Those figures don't establish a universal sign height. Ask your inspector.
Test visibility from realistic approach routes
Walk the kitchen and check sightlines from:
- The grill or fryer station
- The prep area
- The service route
- The employee entrance
- The nearest exit path
Then test under real conditions: steam, smoke, dim lighting, and busy service hours.
Avoid common obstructions
These items commonly hide signs:
- Doors and hood components
- Shelving and rolling racks
- Menu boards and stored supplies
- Cleaning equipment and temporary displays
Reassess after any equipment move, remodel, or storage change.
Select a material suited to the kitchen
Kitchens expose signs to grease, heat, humidity, steam, cleaning chemicals, and constant wipe-downs. Material data is product-specific.
For example, 3M documents moisture and abrasion resistance for its OFL010N overlaminate. That doesn't make a finished sign grease-proof or give it a guaranteed lifespan.
Ask your sign provider for the specific substrate, ink, laminate, and adhesive. Prioritize contrast, readable lettering, and secure mounting over decoration.
Include the sign in routine inspections
Check the sign whenever you check the extinguisher and suppression equipment. Look for:
- Fading, peeling, or cracking
- Grease buildup that hurts legibility
- Loose hardware or damage
- New obstructions
Frequency and documentation should follow current code and your facility procedures.
How to Choose and Maintain Class K Signage
Gather the right information before ordering
Confirm these first:
- The extinguisher's class and exact location
- Whether an automatic hood suppression system is present
- Wall or cabinet dimensions and mounting surface
- Heat, grease, moisture, and other kitchen conditions
- Any wording or format your local inspector requests
A sign provider may need photos, a floor plan, and measurements to recommend size, substrate, adhesive, and hardware.
Avoid signs that create false compliance
Common mistakes include:
- Using a generic fire-extinguisher sign
- Mixing up a Class B sign with a Class K sign
- Relying only on the cylinder label
- Omitting a required suppression-system placard
- Using fragile paper
- Skipping replacement after a renovation
Keep multiple locations consistent
Multi-site operators benefit from one recognizable sign standard, adjusted where a local inspector requires different wording or placement. Build a simple cycle:
- Inspect each sign during the monthly extinguisher check
- Log defects as you find them
- Replace damaged signs promptly
- Re-verify placement and wording after any remodel
Get Custom Class K Fire Extinguisher Signs
Corporate Image has spent more than 30 years designing and producing signs, decals, and durable graphics for demanding environments. As a full-service company, it handles design, production, and professional installation, and it is a 3M Certified Graphics Installation Company.
When you request a quote, include:
- Number of signs and dimensions
- Mounting surfaces and installation locations
- Kitchen conditions
- Any requirements from your fire-protection professional or AHJ
Call 801-485-0103 or use the contact form. Final code approval rests with the applicable authority.
Frequently Asked Questions
Where are Class K fire extinguishers required?
They're generally tied to commercial cooking areas using oils, fats, or grease. IFC 906.4 addresses this equipment. Confirm the exact trigger with your local fire authority.
Do fire extinguishers require signage?
It depends on visibility, the adopted code, and local interpretation. Identification may be needed when a unit is obstructed, enclosed, or not immediately obvious.
What are the OSHA requirements for fire extinguisher signage?
OSHA 1910.157 requires extinguishers to be accessible and identified, and to be inspected monthly and maintained annually. It prescribes no Class K design. NFPA and local codes add their own rules.
What is a Class K fire extinguisher for?
It's for cooking-oil, fat, and grease fires in commercial kitchens. Using the wrong class can fail to control the fire.
What's the difference between Class B and Class K fires?
Class B covers flammable liquids. Class K covers heated cooking oils and fats. Don't substitute one extinguisher for the other; follow the label, training, and fire-safety guidance.
What is the symbol for a Class K fire extinguisher?
It combines the letter K with a pictogram of a burning pan or fryer, but artwork details vary by edition and manufacturer. Check the current NFPA 10 text and your extinguisher label, and keep any sign clear and recognizable.
