Bicycle route wayfinding signage is a coordinated system of directional, destination, confirmation, and user-awareness signs that helps people navigate a bicycle network. NACTO describes it as signs and pavement markings that affirm route-specific decisions and overall orientation within a city network.
This article covers sign types, message design, placement, US compliance, durable materials, and project planning.
Key Takeaways
- Good signs guide riders at decision points and confirm they're still on route.
- Messages need a destination, an arrow, and optional distance or time, without overload.
- Check designs against the current MUTCD, state supplements, and local rules.
- Durability depends on substrate, finish, hardware, installation, and upkeep.
What Are the Main Types of Bicycle Route Wayfinding Signage?
A complete system uses several sign families, each with a different job. Mixing them up is a common planning mistake.
Directional, Destination, and Confirmation Signs
Directional and destination signs help riders choose at intersections, crossings, and trail junctions. They combine a destination name, an arrow, and often distance or travel time. Under the MUTCD, Section 9D.01 covers bicycle destination signs (D1 series) and destination/distance signs (D2 series).
Confirmation signs reassure riders after a turn, along long uninterrupted segments, or near a confusing transition. Silence on a long stretch makes people doubt themselves, so a periodic marker earns its cost.
Route and Network Identification
Route markers identify a named bikeway, bicycle boulevard, shared-use path, or branded local network. The MUTCD includes D11-1 route guides and M1-8 and M1-9 markers, including the U.S. Bicycle Route marker. Identity tells riders which route they're on. Direction tells them where to go next. Keep the two functions distinct.
Warning, Regulatory, and Supplemental Elements
Warning, regulatory, and supplemental elements support the network but serve a different purpose from wayfinding:
- Warnings: W11-1 bicycle warning, W11-15 trail crossing
- Regulatory: R9-20 full lane, R9-21 shoulder only, R5-6 No Bicycles
- Pavement markings (Chapter 9E): bike lane symbols and shared-lane markings
- Supplemental: maps, trailhead information, street-name signs
Pavement markings reinforce a sign system but don't replace directional signs where riders need guidance.
How Should Bicycle Wayfinding Signs Be Designed?
Assess the Network and Rank Destinations
Start by mapping the network. Identify confusing turns, gaps, and connections to transit, schools, parks, commercial areas, and civic buildings. Consider both commuters and recreational riders.

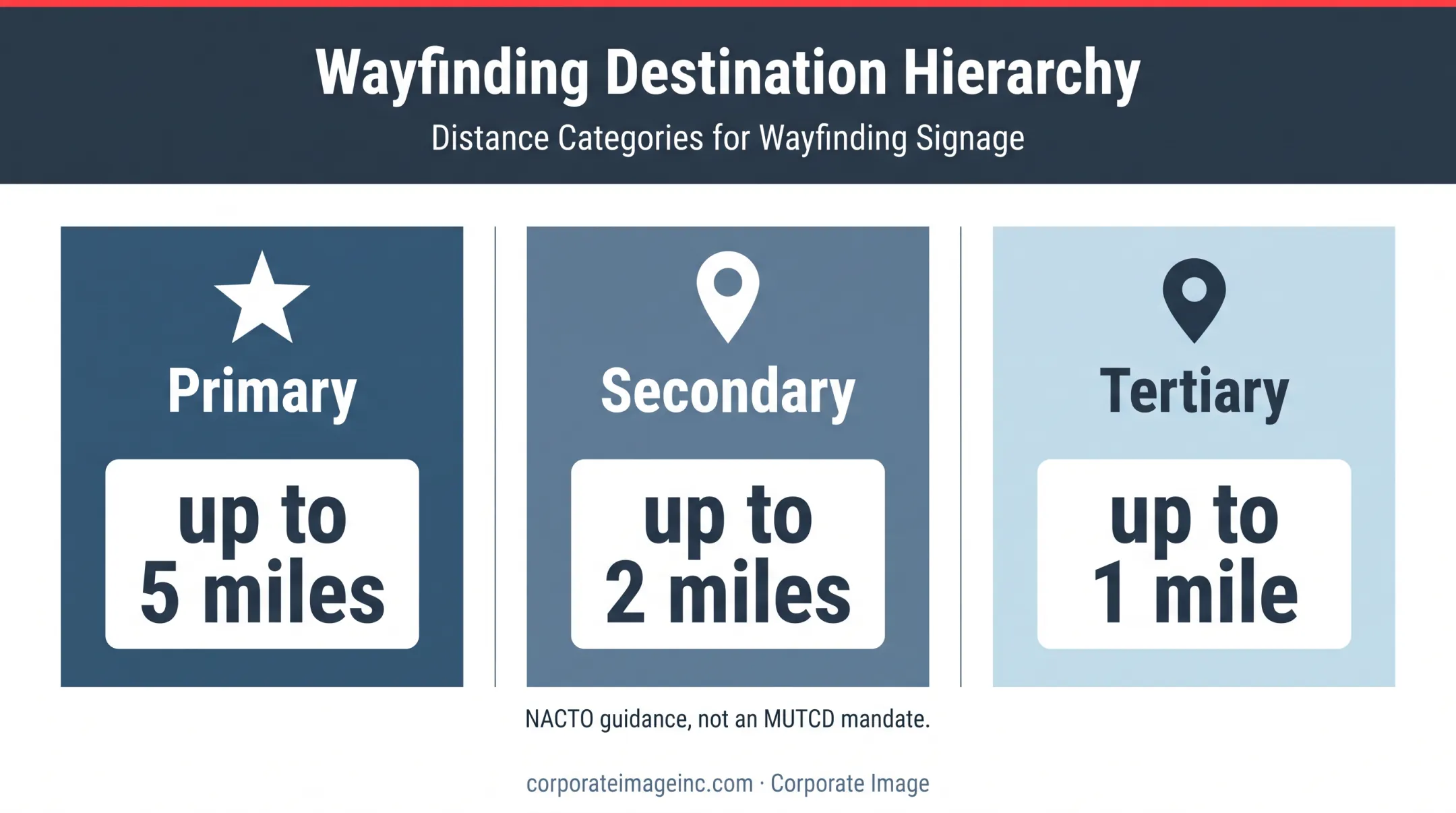

Then build a destination hierarchy. NACTO suggests primary destinations up to 5 miles away, secondary up to 2 miles, and tertiary up to 1 mile. That's guidance, not an MUTCD mandate.
Write Short, Consistent Messages
- Pair a clear destination name with an arrow
- Put the closest destination at the top, per NACTO
- Add distance or travel time only if it stays readable; NACTO uses 10 mph for travel-time calculations
- Use the same names and abbreviations everywhere
- Avoid landmarks that visitors won't recognize
For shared-use path destination signs, the MUTCD recommends no more than three destinations per sign. NACTO gives no universal maximum for on-street signs, so keep them lean.
Visibility, Accessibility, and Branding
FHWA and NACTO guidance does not specify letter height or cyclist viewing distance, so confirm sizes with your state or local standards.
MUTCD Part 9 requires all signs on bikeways to be retroreflective for nighttime visibility. NYC DOT's 2024 concept also recommends plain language and circulation space for low-vision and wheelchair users.
Colors, logos, and route shields can give a network identity. Layout, symbols, colors, dimensions, and placement still have to fit current traffic-control rules. For anything non-standard, MUTCD Part 1 describes interpretation requests and experiments through the responsible agency.
Test Before Full Rollout
Ride the route in daylight and at dusk. Check whether signs can be read without abrupt maneuvers. Gather stakeholder feedback and fix confusing arrows or destinations before ordering the full run.
Where Should Bicycle Route Wayfinding Signs Be Placed?
Decision Points and Confirmation
FHWA's 2016 guide breaks signs into three types: decision signs at junctions, turn signs where routes change streets, and confirmation signs. NACTO recommends decision signs on the near side before turns, and confirmation signs soon after turns and at intervals.
Prioritize these locations:
- Intersections and route turns
- Trail junctions and crossings
- Bikeway entrances, exits, and facility transitions
- Spots where the obvious path differs from the intended route
Connect Destinations
Sign routes that connect riders to destinations in your network plan:
- Trailheads and transit stations
- Underpasses and bridges
- Parks and campuses
- Bike parking and repair services
Sightlines, Height, and Clearance

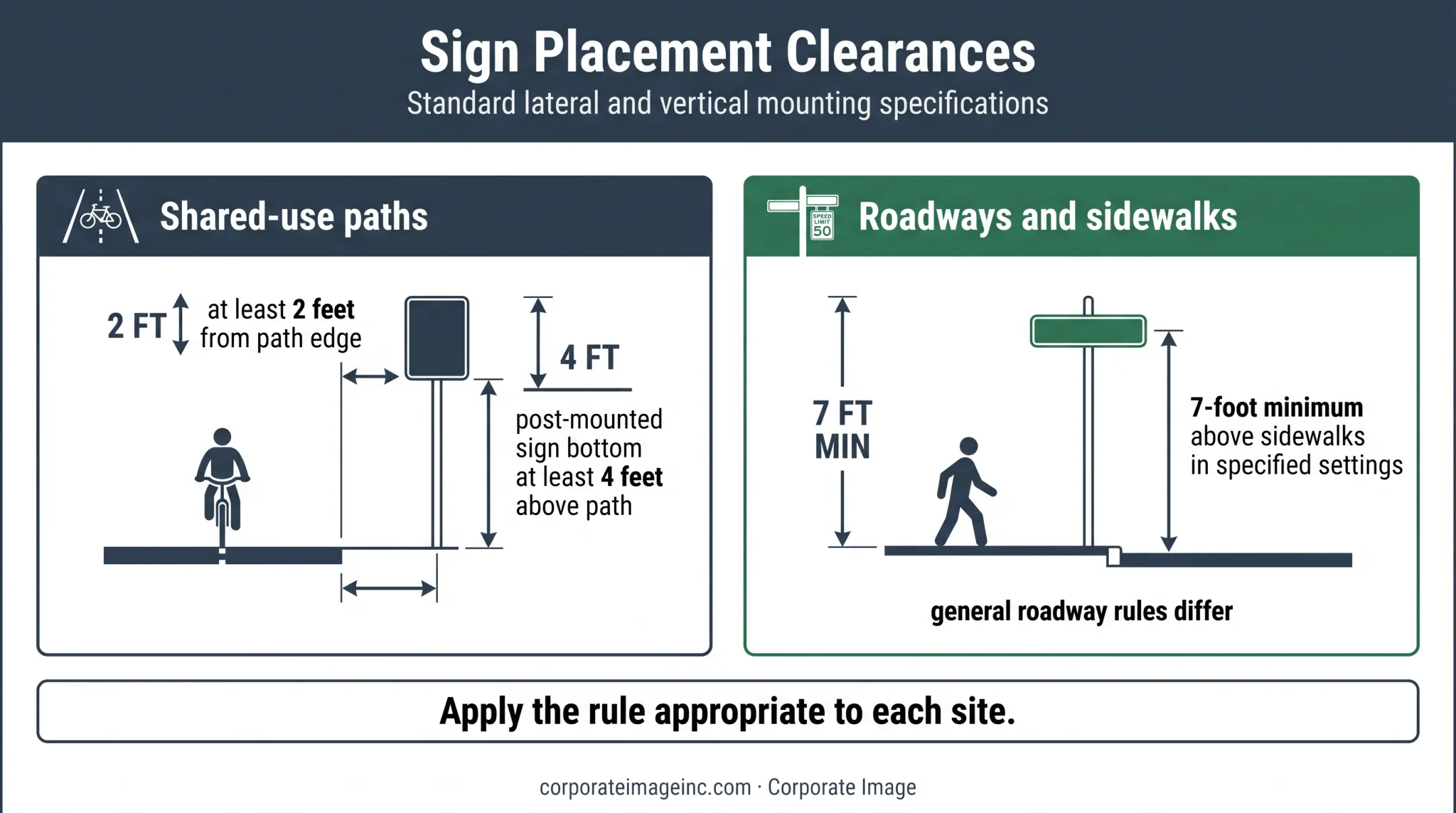

For shared-use paths, MUTCD Section 9A.02 calls for signs at least 2 feet from the path edge, with post-mounted sign bottoms at least 4 feet above the path surface. General roadway rules differ, including a 7-foot minimum above sidewalks in specified settings, so apply the right one to each site.
Also check these:
- Trees, foliage, and street furniture blocking the face
- Visual clutter from competing signs
- Sidewalk circulation (NYC DOT suggests siting in the furnishing zone)
- Conflicts with regulatory signs
- Snow storage and maintenance access
Keep an Inventory
Record each sign's location, message, mounting condition, visibility, and nearby hazards. NACTO recommends a location and message inventory so signs can be cleaned, repaired, or replaced consistently.
Choosing Materials and Meeting US Signage Requirements
Verify Current Standards
The current manual is the MUTCD 11th Edition, with Revision 1 effective March 5, 2026. States had until January 18, 2026 to adopt it or a substantially conforming state manual or supplement. Check your state's status separately, along with local standards and approval steps. Read "shall," "should," and "may" carefully, because they aren't interchangeable.
Match Materials to the Environment
Sun, snow, freeze-thaw cycles, road salt, wind, dust, and vandalism all affect sign performance. Specifications vary by agency. Iowa DOT's Section 4186, for example, permits sheet aluminum, galvanized steel, or specified plywood and flexible roll-up substrates.
Sheeting specs matter too. ASTM D4956 covers retroreflective sheeting for traffic-control signs, including glass-bead and microprismatic types. Product claims are product-specific: 3M's 1160i overlay offers UV protection and graffiti resistance, and Avery Dennison lists up to 15-year durability for OmniCube under its own conditions. Neither is a general sign-life guarantee.
Plan for Maintenance
The MUTCD sets minimum maintained retroreflectivity in Section 2A.22 and Table 2A-5, though agencies may exclude signs intended exclusively for bicyclists or pedestrians. That exclusion doesn't override Part 9's retroreflectivity requirement for bikeway signs. FHWA's retroreflectivity guide describes assessment methods. Build in routine tasks:
- Visibility checks
- Vegetation trimming
- Graffiti removal
- Hardware inspection
- Replacement of damaged panels
- A digital inventory with approved artwork
How to Plan a Bicycle Wayfinding Signage Project
A Practical Workflow
- Define project goals for ridership, safety, and connectivity
- Inventory the network for routes, existing signs, and gaps
- Identify destinations and decision points riders face on the ground
- Consult communities and partner agencies before locking routes
- Prepare a sign schedule by location, message, and sign type
- Obtain approvals from traffic, planning, and neighboring jurisdictions
- Install a pilot on one corridor before system-wide rollout
- Complete a field review on bike to check placement and legibility
- Revise from field findings, then expand
Portland's Bicycle Plan for 2030 follows a similar logic: identify missing sign locations and coordinate route signs with neighboring jurisdictions.
Choosing a Vendor
Evaluate these criteria:
- Design support for route maps and destination naming
- Production quality and outdoor-rated material options
- Installation capability for roadway and trail settings
- Proofing procedures that catch legend and arrow errors early
- Warranty or maintenance support after installation
- Experience in harsh outdoor settings (UV, weather, and wear)
Some agencies prefer one provider for design, production, and installation. Corporate Image, a Salt Lake City company with more than 30 years of graphics and signage experience, handles design, production, custom signage, and professional installation in one program, with 3M-certified installers and a factory-direct 3M relationship. Its customers include Salt Lake City, Salt Lake County, and UTA.
Measuring Results
Collect rider feedback, document missed turns and recurring confusion, and review maintenance reports.

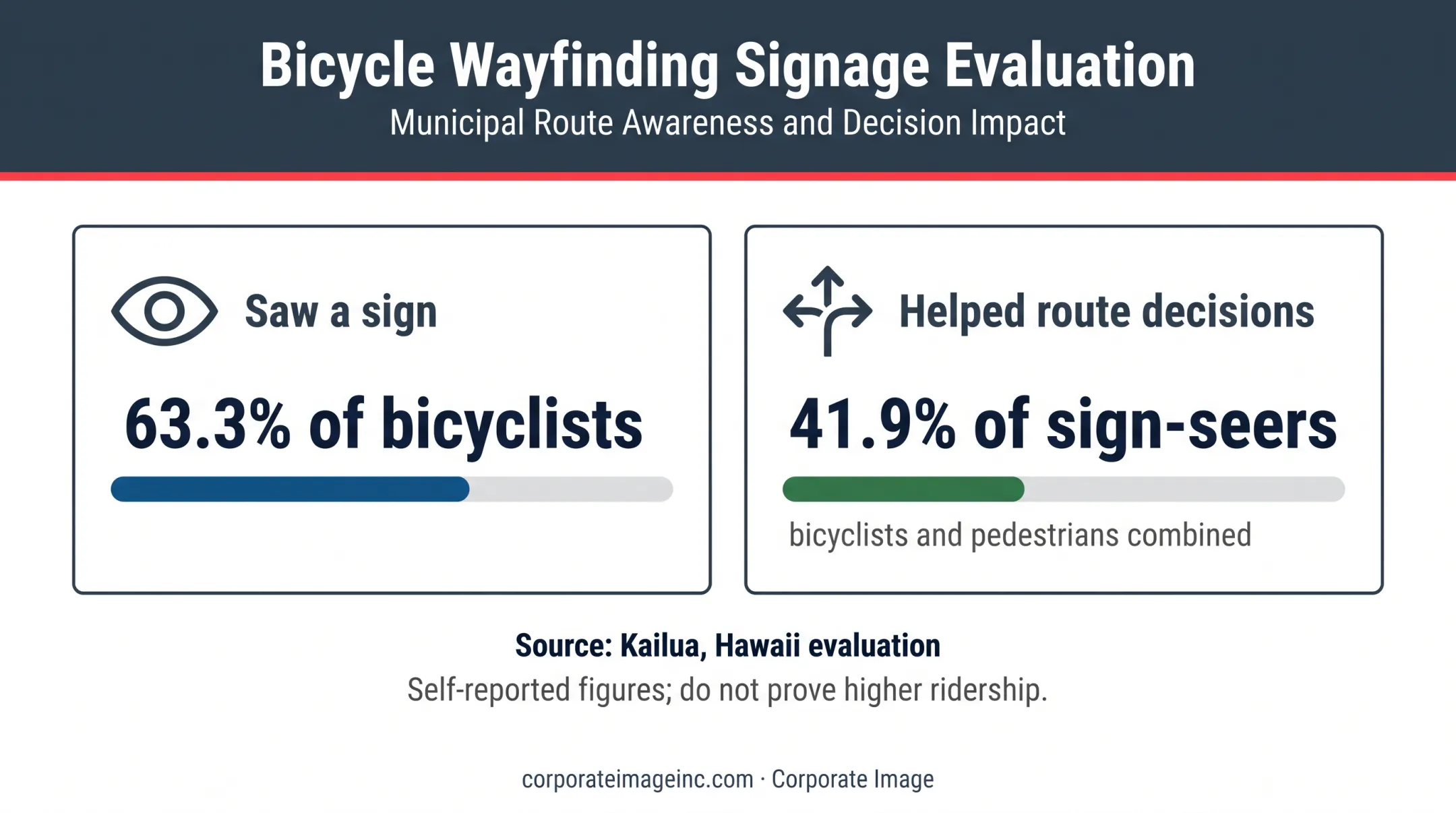

A Kailua, Hawaii evaluation found 63.3% of bicyclists reported seeing a sign, and 41.9% of sign-seers (bicyclists and pedestrians combined) said it helped route decisions. Those are self-reported figures and don't prove higher ridership. Use count data if reliable, but don't credit signs alone.
Frequently Asked Questions
What are the types of bicycle wayfinding signage?
Directional, destination, confirmation, route-identification, warning, and supplemental pavement-marking elements. Exact categories depend on the applicable US standards and your local network.
What does a painted white bicycle symbol on the road indicate?
It depends on the full marking. With lane boundary lines, it identifies a bike lane. In a shared-lane marking, it indicates lateral positioning, not a dedicated lane. Read arrows, chevrons, and nearby signs together.
What does a blue rectangular bicycle sign mean?
Not every blue bicycle sign means the same thing. The MUTCD associates blue with motorist services and other information, and off-highway path guides may vary. Check the symbol, wording, and your state's guidance.
How should bicycle route wayfinding signs be placed?
Place decision signs before turns, intersections, trail junctions, crossings, and entrances. Add confirmation signs after turns and at intervals where riders may doubt their route.
What information should a bicycle wayfinding sign include?
A clear destination name and an arrow, plus a route identifier where useful. Add distance or travel time when it stays readable and consistent.
