Introduction
Screen printing can put bold, durable graphics on plastic. But "plastic" isn't one material. The right choice depends on the resin, the surface condition, the part's shape, and where the finished piece will live.
Get it wrong and you pay for it: adhesion failure, rework, wasted material, premature wear. Plastics are tough to print because of low surface energy, migrating additives, contamination, and few bonding sites, as Enercon's guidance explains. Dyne level alone doesn't guarantee adhesion.
This guide covers what to weigh before you approve a substrate, from chemistry and geometry to curing and validation.
Key Takeaways
- Many plastics screen print well, but each resin, finish, and shape needs its own compatibility check.
- PP and PE usually need surface treatment or an adhesion promoter.
- Screen the substrate, ink, cure method, and end-use conditions together.
- Test production-intent samples before approving a full run.
What Is Screen Printing on Plastic?
Screen printing pushes ink through a mesh stencil onto a plastic sheet, container, label, or molded part. Multicolor jobs generally use one screen per color. "Silk screen" and "screen printing" mean the same thing today. Modern screens use synthetic mesh, usually polyester or polyamide, not silk.
Common plastic substrate families
- Rigid sheet: acrylic, PVC, polycarbonate, PETG
- Packaging and containers: PET, HDPE, PP, PE
- Molded and engineered: ABS
The resin name isn't enough. Marabu notes that printability varies even within one substrate type, because additives, texture, finish, and manufacturing history change the result.
Core components of a reliable setup
Results depend on coordinating the substrate, screen and stencil, ink, squeegee, registration, curing method, and any fixture holding the part.
Substrate and surface condition
Ink has to wet and bond to the surface. Several things get in the way:
- Mold-release residue, which can impair ink adhesion
- Grease, oil, and fingerprints
- Dust and static (insulating acrylic attracts both)
- Scratches and uneven texture
- Missing or inconsistent surface treatment
That's why cleaning and testing on representative samples aren't optional.
Ink, curing, and fixturing

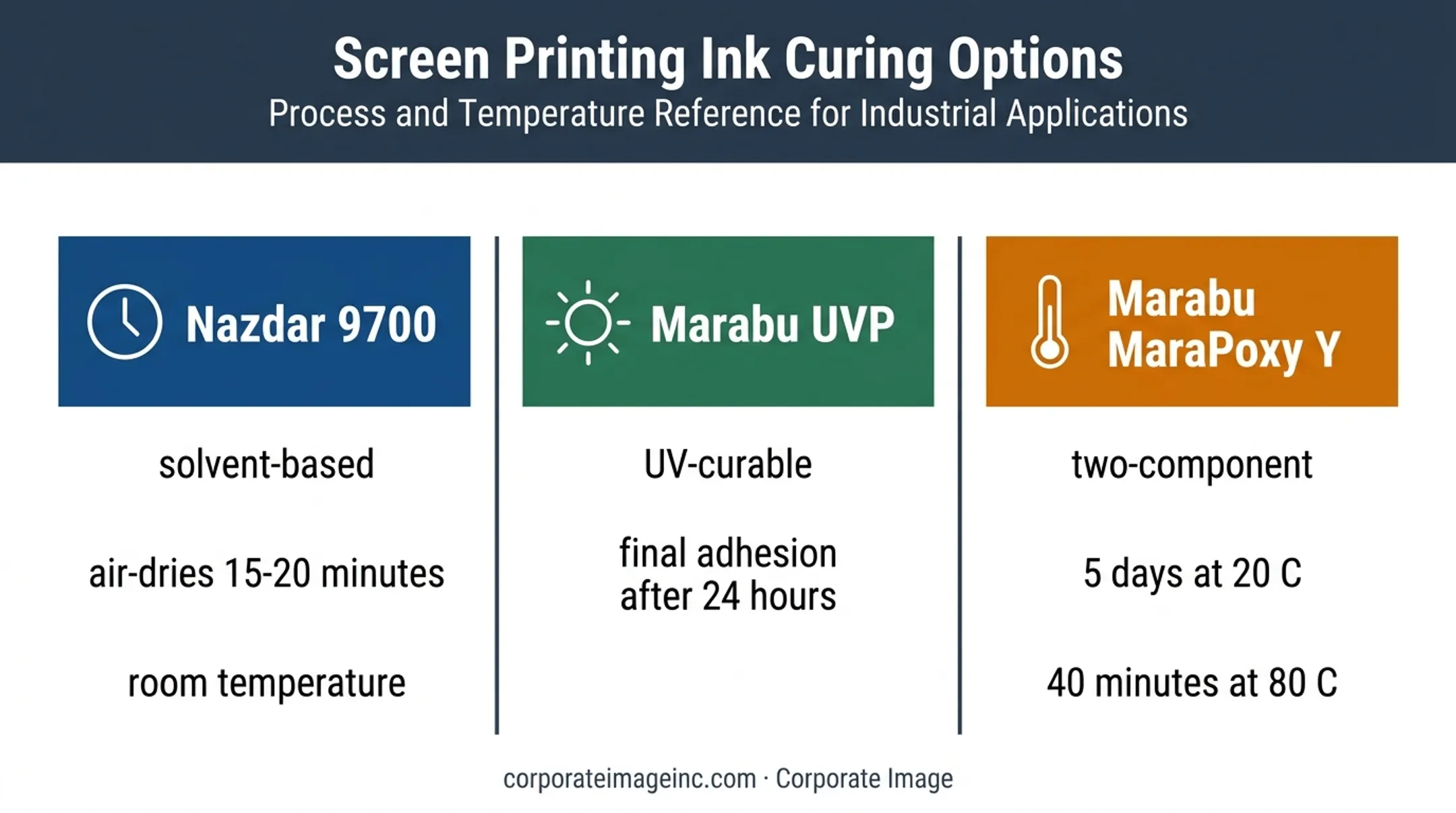

The ink must match both the plastic and the service environment. Curing has to reach full adhesion without deforming heat-sensitive parts. Published ink data shows how widely curing requirements differ:
- Nazdar 9700 (solvent-based) air-dries in 15-20 minutes at room temperature.
- Marabu UVP (UV-curable) reaches final adhesion after 24 hours.
- Marabu MaraPoxy Y (two-component) needs 5 days at 20°C, or 40 minutes at 80°C.
Curved or irregular parts often need custom fixtures. Vacuum tables hold flat panels, and adjustable rollers keep cylinders parallel to the screen.
Benefits of screen printing on plastic
- Strong coverage and opacity, including on dark substrates
- Bold, hand-matched brand colors
- Durable graphics when ink and substrate are matched and cured properly
- Repeatable results across long runs
- Range from signs and labels to containers, equipment panels, and molded parts
Corporate Image reports that screen printing deposits up to 200 microns of ink, versus roughly 10 microns for digital. These benefits only hold once the full material-and-ink combination has been tested.
What to Consider When Choosing the Best Plastic Substrate for Screen Printing
The substrate you choose drives adhesion, appearance, service life, consistency, rework, and total cost. Get the exact resin and grade from your substrate supplier before approving artwork.
Substrate chemistry and surface energy

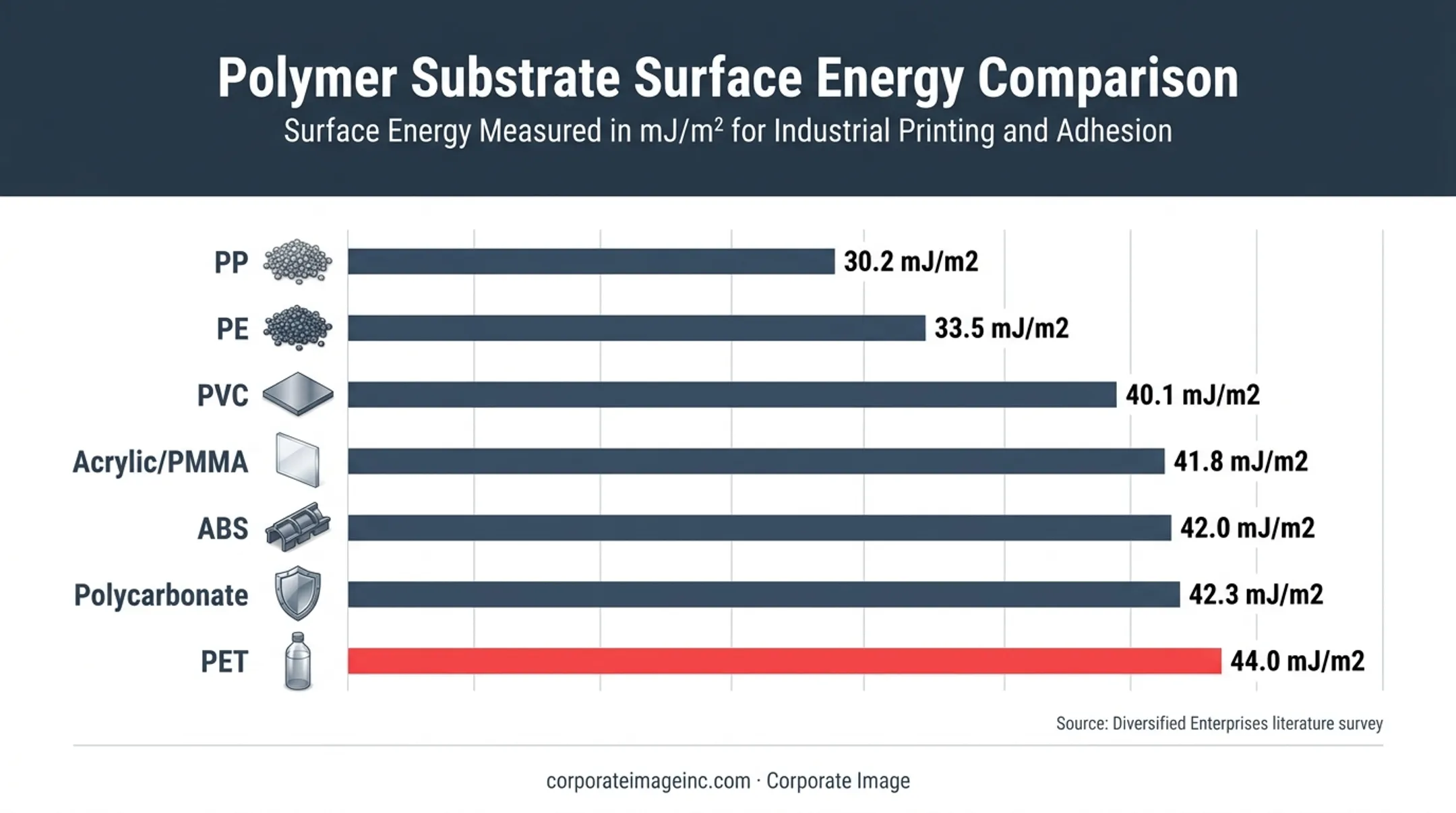

Resin and grade come first, especially for low-surface-energy plastics. A Diversified Enterprises literature survey reports these average surface free energies:
| Plastic | Mean surface free energy (mJ/m²) |
|---|---|
| PP | 30.2 |
| PE | 33.5 |
| PVC | 40.1 |
| Acrylic/PMMA | 41.8 |
| ABS | 42.0 |
| Polycarbonate | 42.3 |
| PET | 44.0 |
These are reference values, not acceptance specs. Ink makers set their own targets. Nazdar 7900 calls for at least 45 dynes/cm on PE/PP, while Marabu UVP cites 48-54 mN/m after flaming.
Treatment options include flame, plasma, corona, and primers. Nazdar PA Poly-All is designed to skip flaming on most PP, though not all. Additives, mold-release agents, and recycled content change adhesion, so two lots of the same resin may not perform alike. Test the actual grade with the ink maker's guidance.
Part geometry, flexibility, and print area
- Flat sheets are the easiest to print and register.
- Flexible films can stretch or shift under the squeegee.
- Bottles and tubes need cylindrical jigs and limit the usable print area.
- Textured or molded parts may distort the image or reduce coverage.
When geometry gets complicated, compare alternatives. Pad printing handles varied part shapes, and UV-DTF transfers suit curved or uneven objects that can't be printed directly.
End-use environment and durability
Define what the print must survive. Common stressors include:
- Outdoor UV and temperature swings
- Moisture, cleaners, oils, and solvents
- Abrasion and handling wear
- Contact with other materials
These conditions drive ink choice, protective coatings, and validation tests.
Avoid universal claims. Nazdar 9700 cites two years of vertical outdoor exposure in the central U.S. for properly cured, full-strength ink, and still warns that slight color and gloss loss should be expected.
Ink and curing compatibility
Choose ink based on the plastic, finish, flexibility, opacity, regulatory needs, and service conditions. Then verify cure requirements against heat sensitivity so the part doesn't warp or hold an undercured print.
Watch for solvent and plasticizer effects:
- PLEXIGLAS guidance calls for inks that won't cause acrylic stress cracking
- Marabu warns UVP can embrittle PVC and recommends preliminary trials
- Highly plasticized vinyl is a known problem, since plasticizers can migrate into printed ink
Artwork, color, and surface appearance
Screen printing favors bold, opaque, limited-color designs. Check these against your substrate:
- Number of colors (one screen each)
- Fine lines and small text
- Opacity on clear or dark plastic
- Registration tolerance
- Desired gloss or texture
Corporate Image notes screen printing can handle up to six colors and halftones. Highly detailed photographic or variable-data graphics may fit digital methods better.
Production volume, cost, and quality validation
Screens take time and money to make, but unit cost drops as runs grow. FESPA does not publish a universal breakeven point, so quote your actual job. Corporate Image points to a 10,000-piece hard-hat decal order as one where screen printing beats digital on speed and cost.
Test production-intent samples for the failure modes that matter:
- Adhesion (tape tests, though ASTM D3359 was developed for metallic substrates, so plastics need agreed criteria)
- Abrasion (ASTM D4060)
- Chemical and cleaner resistance (ASTM D1308)
- UV exposure (ASTM G154)
- Temperature, humidity, and color or gloss stability
Agree on acceptance criteria with your customer, based on the application.
How Corporate Image Can Help

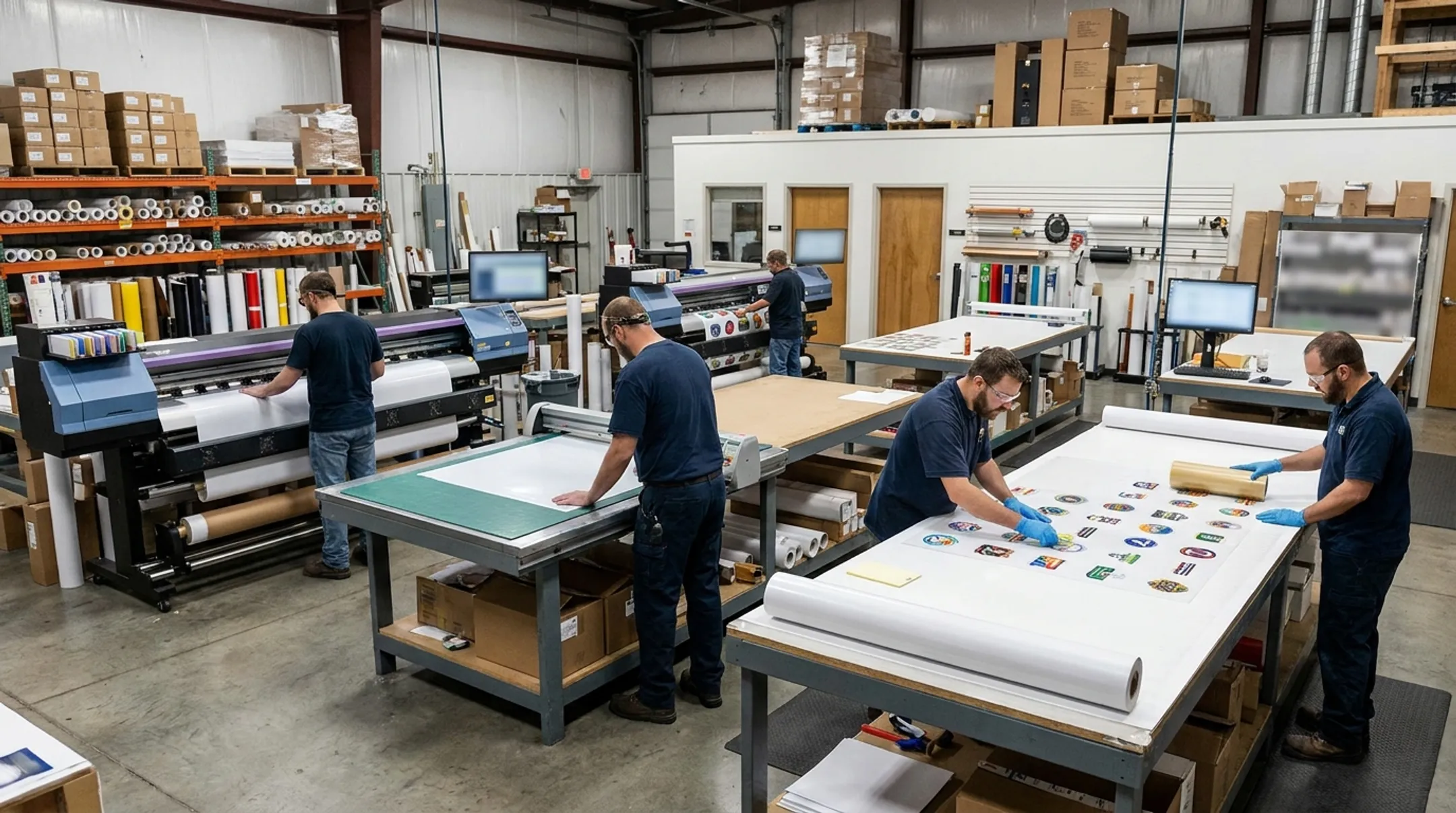

Corporate Image is a full-service custom graphics, signage, printing, and installation company in Salt Lake City. We handle difficult surfaces and produce durable decals, labels, signs, and branded plastic components.
Our team supports a project from design and substrate discussion through production and, when needed, professional installation. For the best guidance, send us:
- The exact plastic type
- Part dimensions and artwork
- Quantity
- Indoor or outdoor use
- Cleaning exposure
- Durability expectations
We bring more than 30 years of graphics experience, broad production capabilities, and custom solutions for industrial and demanding environments. Our factory-direct 3M relationship and 3M-certified installers also support projects that need installed graphics.
To discuss a custom plastic graphics, decal, label, or signage application, request an estimate or call 801-485-0103.
Conclusion
The best plastic substrate is the one whose surface, shape, durability, appearance, and production needs fit your screen-printing system, not simply the most common or cheapest option.
Before committing to a run:
- Confirm the exact resin and finish
- Consult ink and substrate manufacturers
- Test representative samples
Keep improving after production. Review performance, document the material-and-ink combinations that worked, and revisit the process whenever the substrate, supplier, artwork, or end-use conditions change.
Frequently Asked Questions
Which is better, silk screen or DTF?
Neither wins universally. Screen printing suits bold, opaque, long-run work on flat or cylindrical plastic. Conventional DTF is built for textiles, while UV-DTF can decorate curved objects but needs adhesion testing on your specific plastic.
Can you screen print onto plastic?
Yes, many plastics print well. Adhesion, surface prep, curing, shape, and end-use testing decide whether a particular item is suitable.
What type of material can you screen print on?
Common options include acrylic, PVC, polycarbonate, PET, PETG, ABS, HDPE, PP, and PE. Resin grade, finish, additives, and flexibility can change results, and PP and PE usually need treatment.
Can I print a logo on a water bottle?
Often, yes. Review the bottle resin, curvature, usable print area, cleaning exposure, and ink compatibility first. If the bottle contacts food or drink, check the ink's food-contact suitability, since some inks, such as Marabu UVP, are excluded.
What ink is used for screen printing on plastic?
It depends on the plastic and service conditions. Options include solvent-based, air-dry, two-component, and UV-curable inks. Check the ink maker's compatibility guidance and test samples.
What kind of printer prints on plastic?
A screen press transfers ink through a mesh stencil. UV flatbed, digital, and pad-printing equipment also decorate plastic. The best fit depends on shape, artwork, quantity, and required durability.
