No reliable industry statistic exists for how often proof errors cause reprints, but the cost logic is plain. Printers' terms, such as Tailored Label's terms, limit responsibility for errors in approved proofs. Once you sign, the mistake is yours.
This guide walks through a step-by-step process: checking digital artwork, evaluating physical proofs, interpreting findings, documenting approval, and deciding when to demand a revision.
Key Takeaways
- Check the file against the approved specs: content, size, dieline, bleed, colors, material, and variable data.
- Treat a PDF as a layout and content check, not a color guarantee.
- Use a physical or cut proof to judge substrate, finish, cut, and fit.
- Approve in writing, only on the confirmed latest revision.
What You Need to Check in Label Artwork and Print Proofs
Looking at the design on screen isn't a review. You compare the proof against the approved specifications, the intended use, and the printer's production notes.

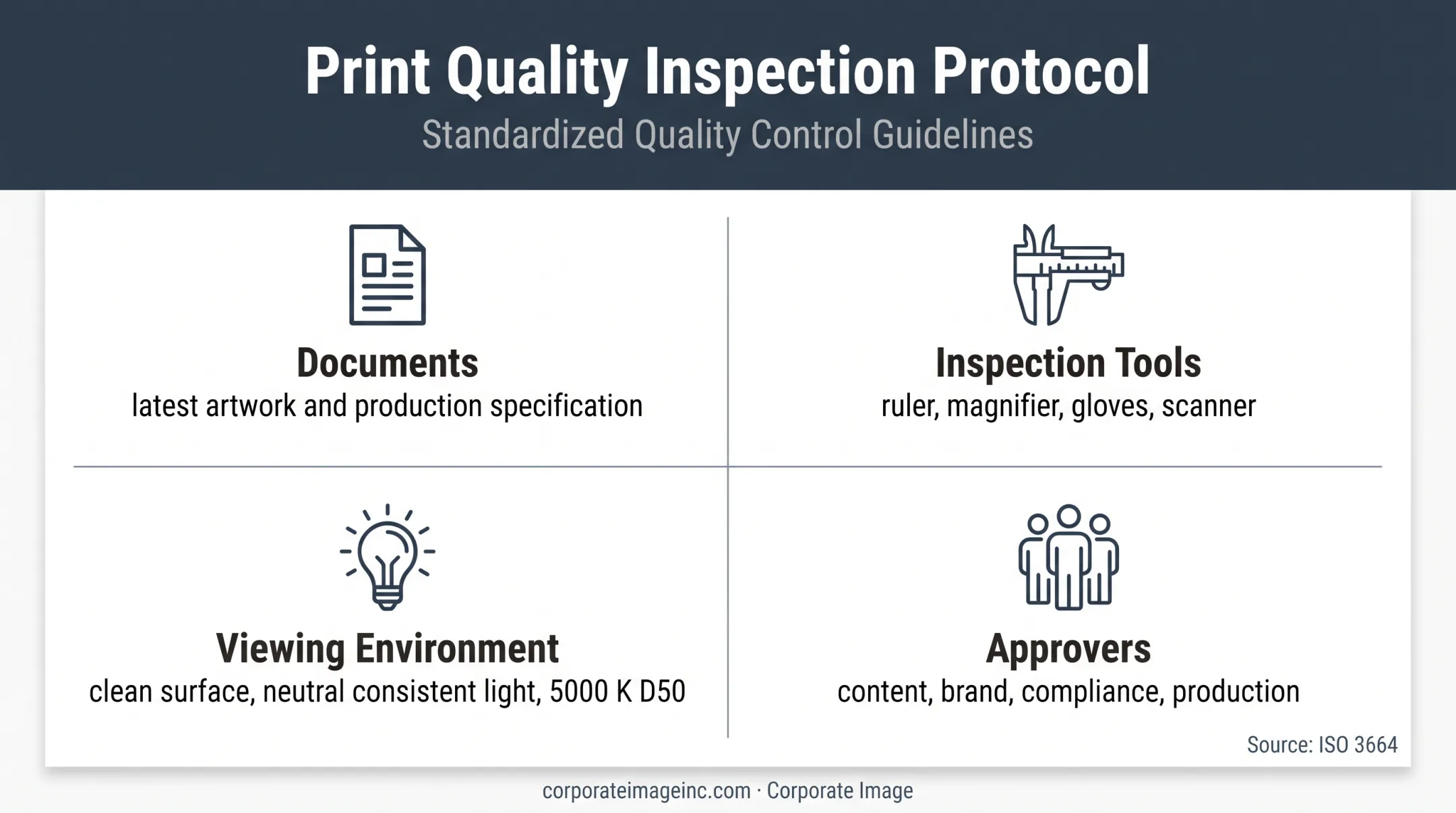

Tools and Indicators Required
Gather these before you start:
- The latest artwork file and the order or production specification
- Brand guidelines and approved color references
- A ruler or caliper and a magnifier
- Neutral lighting
- Clean gloves or handling materials
- A phone or scanner for testing barcodes and QR codes
On a physical proof, check for:
- Sharp text and graphics
- Consistent color fields and correct registration
- Clean edges, intact finishes, and accurate cut lines
- Readable variable data
Flag defects such as smearing, banding, scratches, bubbles, and stray marks. The Flexographic Technical Association defines misregistration as one design part incorrectly positioned relative to another, and describes pinholing as small holes in solid print areas. These are defect descriptions, not universal acceptance limits.
Preconditions and Setup
Confirm these details before the review begins:
- File name and revision number
- Label size, material, adhesive, and finish
- Quantity and orientation
- Intended application
Flag any mismatch between the proof and the order.
Set up the environment next. View digital files at a useful zoom. Check physical proofs on a clean, flat surface under neutral, consistent light—not a phone screen or dim office. Print-viewing standards such as ISO 3664 point to 5000 K, D50 lighting for color judgment.
Finally, gather every approver: content, brand, compliance copy, and production. Keep one approval record so instructions don't conflict.

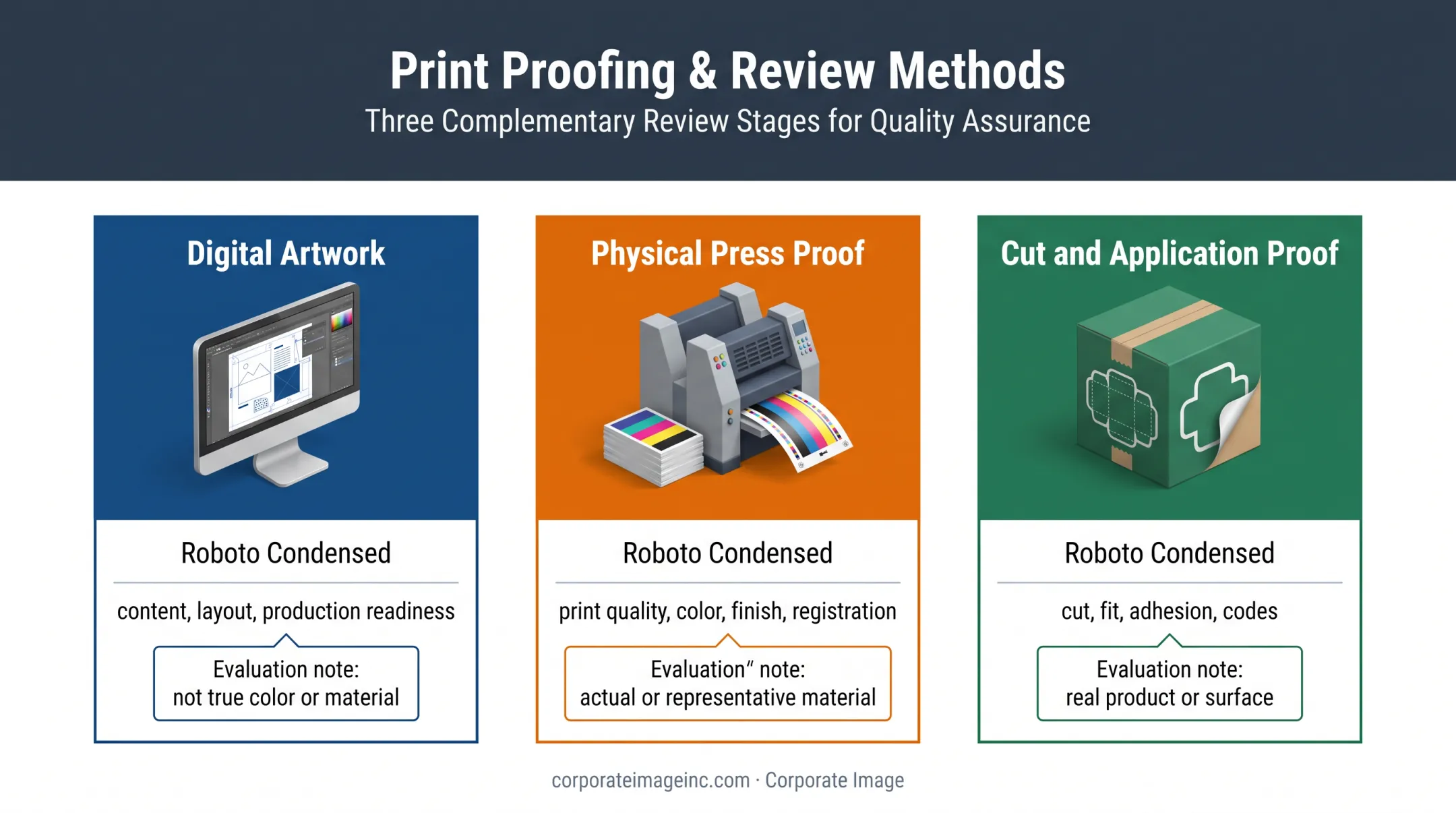

Methods to Check Label Artwork and Print Proofs
The right method depends on what you need to confirm. Digital artwork suits content and layout. A press proof shows printed appearance and material. A cut or application proof verifies physical fit.
Review Method 1: Check the Digital Artwork or PDF Proof
Use this to confirm the file holds the right information and is production-ready. A screen may not show true printed color, texture, opacity, or finish.
Step 1: Verify content. Compare against the approved source document:
- Product name, instructions, ingredients or required copy
- Contact details, legal text, SKU or lot information
- Spelling, grammar, capitalization, and punctuation
Step 2: Verify geometry and file prep. Check:
- Dimensions, orientation, dieline, trim line, corner treatment
- Bleed and safe area
- Logo proportions, image placement, font handling, linked graphics
- White-ink, varnish, foil, or other special layers
Bleed and margin requirements vary by supplier. StickerGiant specifies 1/8 inch bleed, while MCC calls for at least 2 mm. Check your printer's guidelines rather than assuming a universal number.
MCC also requires 300 ppi minimum for raster images and separate layers for spot color, foil, and varnish.
Step 3: Verify specs. Match color specifications, material, adhesive, finish, unwind direction, roll or sheet format, and variable data instructions to the printer's quote.
Pros: Fast, easy to circulate, and good at catching content and layout errors.
Cons: It can't reliably confirm how the substrate, ink, coating, or cut will look and feel. Wizard Labels' terms, for instance, state that electronic proofs are not a reliable indication of color.
Review Method 2: Inspect the Physical Press Proof
A physical proof on the intended or a representative material shows actual print quality, color appearance, finish, and registration before the full run. Keep the approved artwork beside it for comparison, along with a ruler, magnifier, and a clean surface.
Step 1: Compare against the approved artwork. Check:
- Copy and logo placement
- Proportions and image sharpness
- Color relationships, white areas, and transparency
- Special effects
Step 2: Judge the material. Check opacity, texture, gloss or matte appearance, coating, and adhesive construction. Confirm it suits the surface, handling, and environment.
Substrate matters more than people expect. Clear, metallic, and kraft surfaces change how translucent CMYK inks look, which is why white primer is sometimes added for opacity.
Step 3: Hunt for defects. Look closely for:
- Registration errors and uneven coverage
- Streaking, banding, and smudging
- Pinholes and scratches
- Color inconsistency and poor contrast
- Illegible small text
- Problems along the trim or finish
Pros: A far more realistic reference than a PDF.
Cons: Color still shifts with viewing conditions, proofing process, press conditions, and material. Ask the printer what the proof represents before you approve it. A contract proof, for example, is a measured color reference, while a general press proof may only show layout and substrate.
Review Method 3: Verify the Cut, Application, and Production Fit
A cut proof, mock-up, or sample application confirms the label works on the real product, package, surface, or equipment. You'll need a cut sample, the intended surface or a representative one, a ruler, application instructions, and a scanner where relevant.
Step 1: Check the cut. Confirm shape, dimensions, rounded corners, clearances, bleed, and spacing between labels or versions match the approved dieline.
Step 2: Apply the sample. Check:
- Adhesion, wrinkles, edge lift, and distortion
- Orientation
- Readability at expected viewing distance
- Clearance from seams, curves, handles, or obstructions
Adhesion deserves its own test. ASTM D3330 measures 180-degree peel, and 3M's data sheets cite a 72-hour dwell for their published results. Those are product test conditions, not universal pass criteria.
Step 3: Test functional elements. Scan barcodes and QR codes, and check serial numbers, warning copy, and variable data under real conditions. Document any failure or marginal result.
For 2D codes, GS1 guidance calls for a 4X quiet zone around QR Codes and at least 30% symbol contrast, with about 50% recommended. Its 0.396 mm minimum X-dimension applies to retail point-of-sale, not every industrial label.
Pros: It reveals problems a screen or flat proof can't.
Cons: It needs a representative surface and doesn't replace review of the final production specs.

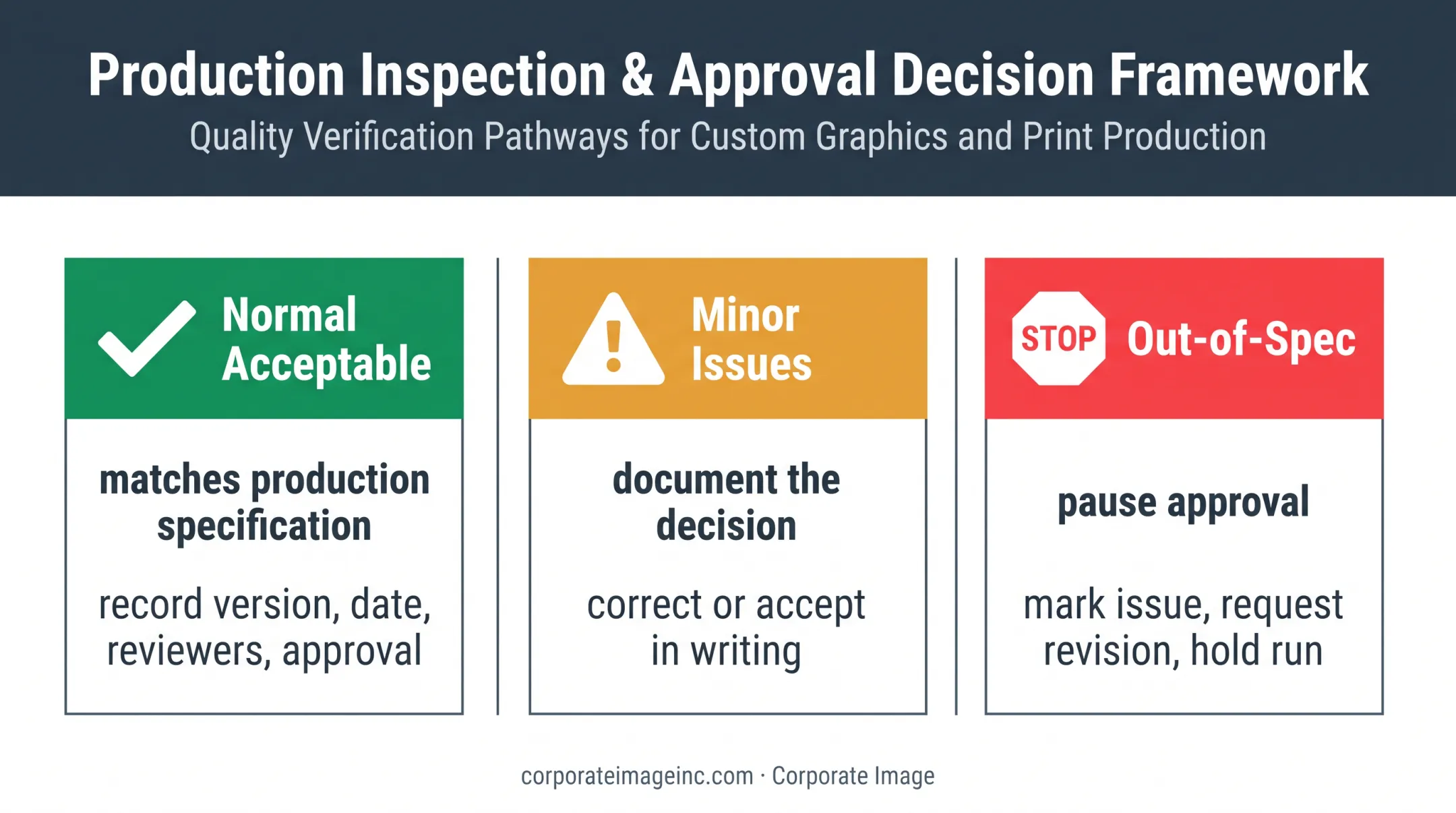

How to Interpret the Results
Base approval on the agreed specification and intended use, not personal preference. Misjudging a proof leads to reprints, unusable labels, application failures, or misleading brand and compliance information.
Normal/Acceptable
The proof is acceptable when these items match the production spec:
- Content and artwork version
- Dimensions and dieline
- Color intent, material, and finish
- Legibility and variable information
- Application fit
Record the proof version, date, reviewers, and written approval.
Minor Issues
Some issues don't block production but still need a documented decision:
- Slight cosmetic variation within the agreed tolerance
- A non-critical spacing adjustment
- A question about an optional finish
Request a correction when the fix is simple and low-cost. If you accept the variation, get that acceptance in writing.
Many printers' terms allow reasonable color variation and a quantity swing of about +/-10%. Those are contract provisions, not industry-wide tolerances. They don't define acceptable color difference or registration error.
Out-of-Spec
Pause approval for any of these:
- Incorrect copy or the wrong artwork version
- Missing graphics
- Wrong dimensions or dieline
- Unreadable text or codes
- Poor registration
- Unsuitable material or failed adhesion
- Wrong orientation
- Unacceptable color or finish
Mark the exact location, describe the fix, request a revised proof, and hold the run until it's resolved.
Common Errors and Safety Best Practices
Common Review Errors
- Approving the wrong revision, or assuming a PDF shows true color, material, finish, or cut quality
- Checking the front but missing reverse-side content, white-ink layers, bleed, roll direction, or production notes
- Relying on one reviewer, poor lighting, a phone display, or an unverified color reference
- Skipping tests of small text, barcodes, and QR codes at their real size
- Sending scattered verbal or email corrections instead of one consolidated change list with clear file naming
Safety and Best Practices
- Handle proofs with clean hands or gloves, and keep the surface free of dust and moisture so you don't mistake debris for a print defect.
- Work in a stable, well-lit area. Follow safe handling practices for cutting tools, coatings, and adhesives, and never run an application test on an unstable surface.
- Send regulatory, safety, and mandatory labeling copy to the responsible specialist. A proof review is not a compliance review. OSHA covers hazard communication on shipped chemical containers; ANSI Z535.4 covers product safety labels.
Conclusion
Reliable proofing pairs a detailed digital check with a physical review of print, material, finish, cut, and fit, followed by documented approval of the correct revision. Catching a problem on a proof costs minutes. Catching it after a full run costs the run.
If your team needs help preparing production-ready artwork or coordinating design, printing, and installation, Corporate Image's full-service graphics team takes jobs from concept to installation. We are a 3M Certified Graphics Installation Company.
Frequently Asked Questions
What is a print proof for a label?
It's a digital or physical representation used to confirm content, layout, appearance, materials, and production details before the final run. A PDF proof checks layout and copy; a physical press proof shows how it prints.
What should I check on a digital artwork proof?
Check copy, spelling, dimensions, dieline, bleed, safe area, colors, linked graphics, fonts, and white-ink or finish layers. Also confirm material specs, orientation, and variable data.
Does a PDF proof show the final printed color?
Usually not. A PDF is more dependable for layout and content than exact color or material. Confirm the printer's proofing process, or request a physical proof when color is critical.
When should I request a physical press proof?
Ask for one on first-time projects, new materials or finishes, important brand colors, complex artwork, or tight application requirements. Also request one whenever a mistake would be costly.
What should I do if I find an error on the proof?
Record the exact issue and the current revision, then send one consolidated correction list. Request a revised proof and withhold approval until the fix is confirmed.
Can I approve a print proof and still receive a different result?
Yes. Approved tolerances, material and press conditions, finishing, and application variables can all shift results. Confirm what the proof represents before you sign.
