It shapes how a graphic handles weather, scratches, cleaning, glare, color, installation, and eventual replacement. Get it wrong and you reprint early.
Even manufacturer lifespan figures come with conditions. Nazdar's S2 screen ink data sheet specifies 3 years of outdoor durability, but only at full strength, properly cured, and mounted vertically in the Central USA. This guide covers how to choose between the two methods.
Key Takeaways
- First-surface ink sits on the viewer-facing side and suits opaque materials, decals, labels, and fleet graphics.
- Second-surface artwork sits behind clear material, which shields the ink and adds depth.
- Substrate, viewing side, exposure, glare, and cleaning decide the best method.
- Durability comes from the whole graphic system, not ink placement alone.
First vs. Second Surface Printing: Quick Comparison
| Factor | First-surface | Second-surface |
|---|---|---|
| Ink location | Front, viewer-facing side | Rear of a clear substrate |
| Artwork | Reads normally | Mirrored during production |
| Substrate | Opaque, colored, metallic, reflective, or clear | Clear or translucent: acrylic, polycarbonate, glass, clear film |
| Protection | Often needs laminate or clear coat | Clear face shields ink from handling |
| Look | Direct, traditional | Depth, gloss, layered effects |
| Cost drivers | Simpler with opaque material | Clear substrate, mirrored files, white ink, backing, fabrication |
Pricing varies too much by project to state a universal difference. Request a project-specific quote.
A few points the table can't capture:
- Protection is not weatherproofing. A clear face shields ink physically, but Nazdar's second-surface 2400 screen ink is not recommended for long-term outdoor exposure.
- White backing matters. Maverick Label notes a white flood coat is typically needed for accurate top-color rendition on clear Lexan labels.
- Edges and mounting still count. Substrate quality, UV, edges, and cleaning all affect service life either way.

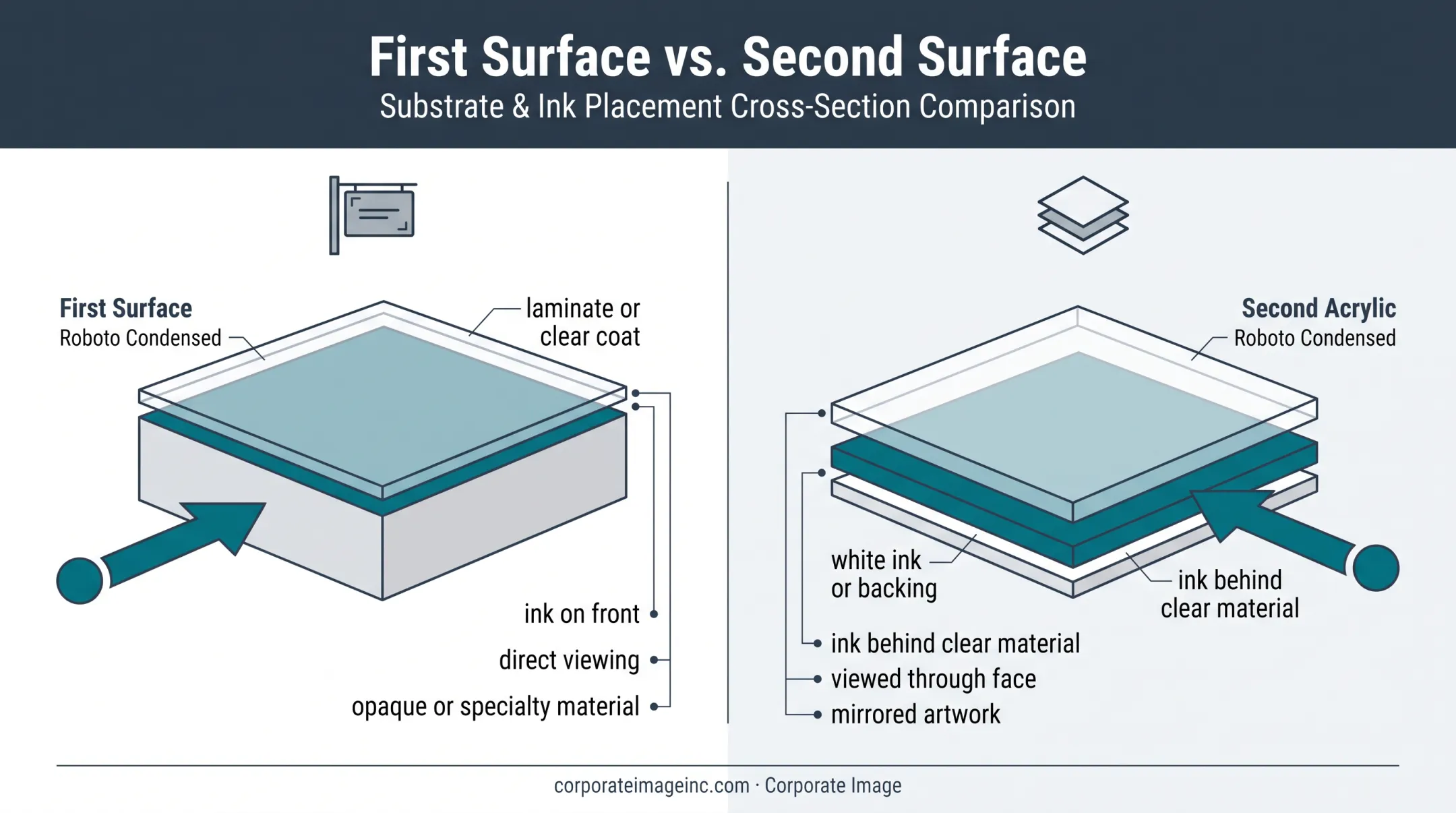

What Is First-Surface and Second-Surface Printing?
First-Surface Printing
First-surface printing places ink on the top or front of a substrate, and you view the image from the same side. Durability depends on matching substrate, ink, and finish to the exposure.
Exposed ink usually needs protection. Options include a laminate, a liquid UV clear coat, or another protective finish. In Corporate Image's experience, screen-printed liquid UV clear coats outlast adhesive solid laminates, which can fail much sooner.
Use Cases of First-Surface Printing
First-surface works best when direct viewing and strong contrast matter most:
- Opaque signs and logo decals
- Vehicle and fleet graphics
- Equipment, warning, and instructional labels
- Reflective graphics and hazard markings
Verify material and finish suitability for each environment before committing.
Second-Surface Printing
Second-surface printing, also called subsurface printing, applies ink to the back of a clear material. The image is seen through the unprinted face. That means reverse (mirrored) artwork, and often white ink or a backing layer so colors don't wash out.
The clear face protects the image from abrasion, handling, and routine cleaning, and it creates visual depth. It does not make every substrate suitable for prolonged outdoor use.
Print method is a separate decision. Mimaki documents digital second-surface printing on acrylic, while Nazdar makes a screen ink for second-surface overlays. Digital and screen printing describe how you print, not where the ink sits.
Use Cases of Second-Surface Printing
- Clear acrylic signs and decorative panels
- Overlays, displays, and wayfinding
- Premium branded pieces
- Reverse-printed decals read through glass
Viewing direction, transparency, glare, and mounting method all shape the result.
First vs. Second Surface Printing: What Is Better for Durable Graphics?
Neither wins outright. Start with five questions:
- Where will the graphic be viewed from?
- What material will you print on?
- Which side faces weather or abrasion?
- How often will it be cleaned?
- How long must it stay in service?
When First-Surface Fits
Choose first-surface when the project:
- Uses an opaque or specialty material
- Needs direct color impact
- Involves decals or labels
- Can take a protective laminate or coating over the print
Corporate Image's screen-printed poly plastic signs are a good example: the inks bite into the plastic and resist scratching and fading.
When Second-Surface Fits
Choose second-surface when:
- A clear substrate fits the application
- Ink should sit protected behind acrylic, polycarbonate, glass, or clear film
- You want a refined, deeper finish

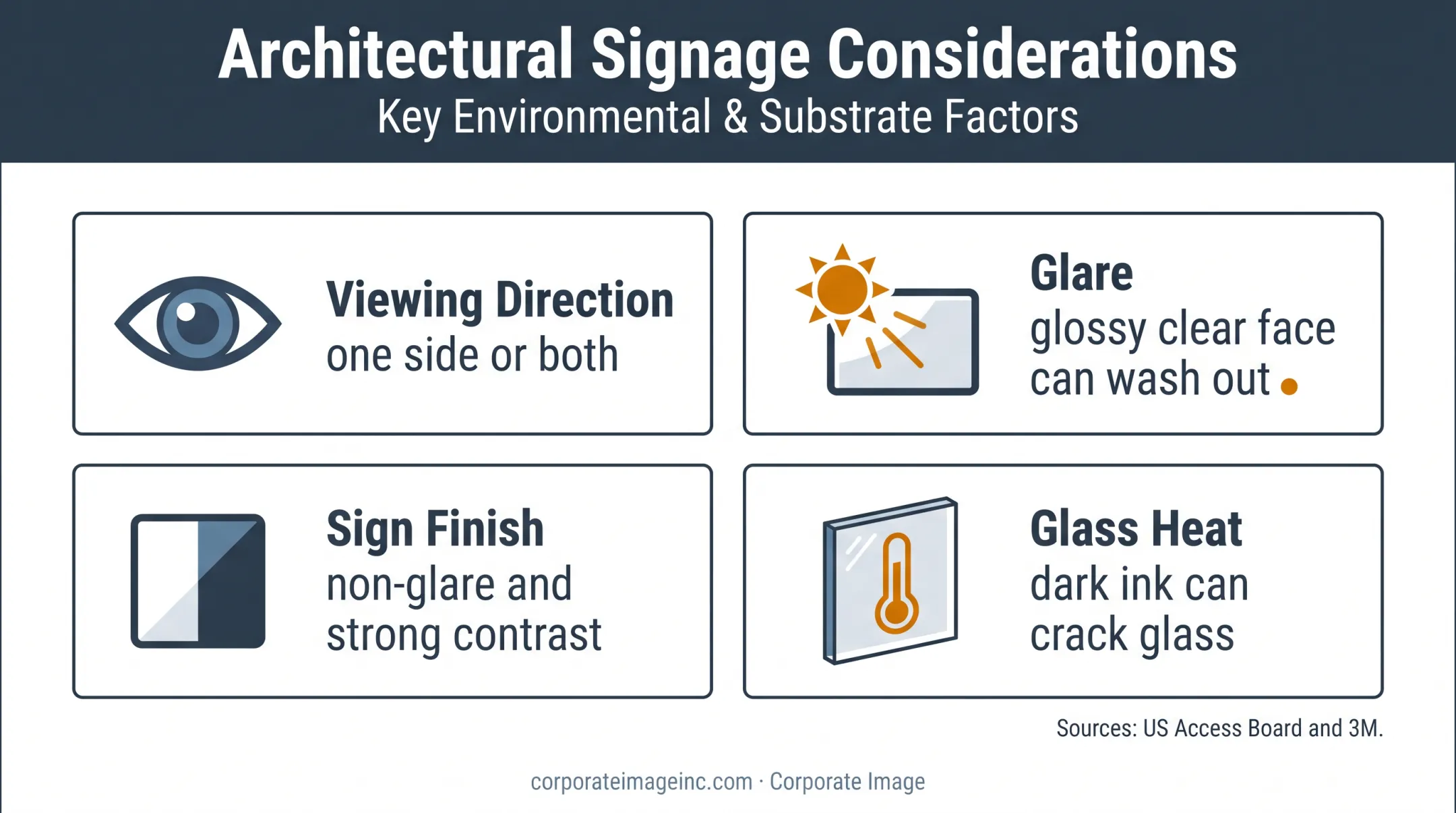

Readability and Lighting
Sunlight, reflections, interior lighting, and viewing distance all change legibility. Glare can wash out a glossy clear face. The US Access Board requires non-glare finishes and strong contrast on signs covered by its character requirements. Decide up front whether the sign must read from one side or both.
Glass brings a separate heat risk. 3M warns that high-opacity film areas or dark ink can absorb heat and crack glass in significant sunlight.
Cleaning and Material Limits
Material makers set clear cleaning and handling limits:
- ACRYLITE recommends mild soap and lukewarm water; alcohol and solvents such as acetone can craze acrylic
- Avery advises cleaners near pH 3–11 and warns that angled power-washer jets can lift graphic edges
- A 48-inch acrylic sheet can move about 3/16 inch across a 100°F seasonal swing, so mounting must allow for expansion
- Laser-cut polished edges carry stress; ACRYLITE recommends annealing to reduce crazing
Preproduction Checklist
Lock these items before you choose a print method:
- Substrate and grade
- Artwork orientation (mirrored or not)
- White-ink or flood-backing needs
- Protective finish
- Expected exposure
- Approved cleaning products
- Installation surface
- Edge protection
- Replacement access
- Physical sample or proof

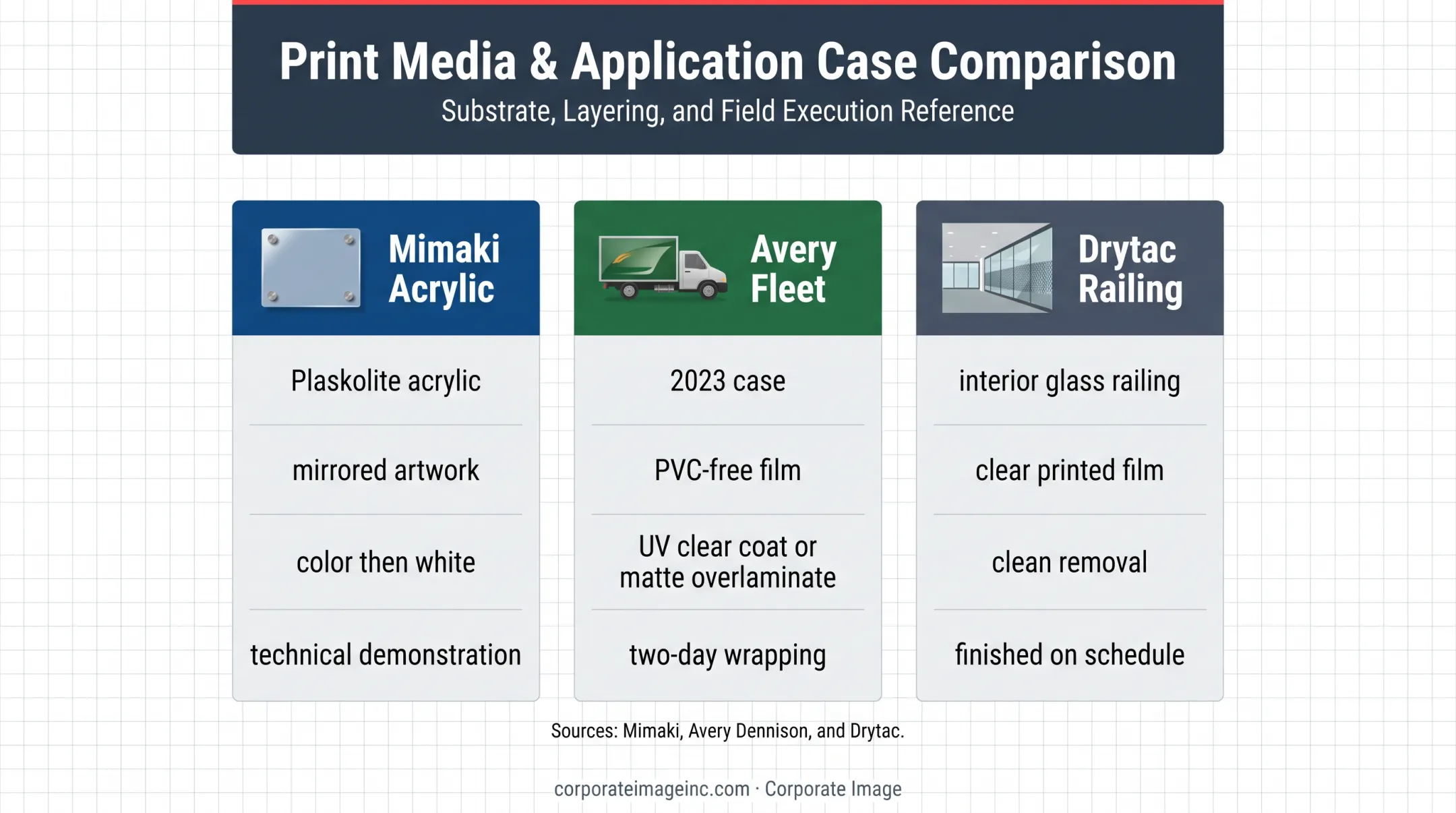

Real-World Examples and Case Studies
Documented cases rarely state both ink placement and measured durability, so treat any ranking claim with caution.
Mimaki's acrylic sign. Mimaki documents a sign printed on Plaskolite acrylic using mirrored artwork, color first, then white. It is a clear second-surface construction, though a technical demonstration rather than a field lifespan study.
Avery Dennison's fleet. In a 2023 case, one truck got a PVC-free film with UV clear coat and another used a matte overlaminate. Wrapping took two days and trucks returned to service quickly. Ink placement and service life aren't reported.
Drytac's glass railing. An interior glass railing used clear printed film chosen for clean removal after an event. The job finished on schedule, but no durability figure was given.
Choose by construction and conditions, not by label:
- First-surface with a protective finish for decals, labels, and fleet graphics
- Second-surface when clear acrylic or glass and a premium look are the goal
Corporate Image has produced custom graphics, decals, and signs in Salt Lake City for over 30 years. Its work spans resort signage, fleet graphics, and equipment labels, with factory-direct 3M materials and 3M-certified installers. If you're weighing materials for a demanding application, call 801-485-0103 or use the website contact form for an estimate.
Conclusion
First-surface printing isn't inferior, and second-surface isn't automatically tougher. The right method depends on substrate, viewing conditions, exposure, finish, and maintenance.
Evaluate the whole assembly: ink, laminate, substrate, edges, installation, and cleaning. Before approving a production run, ask for a project-specific recommendation and a physical sample.
Frequently Asked Questions
What kind of machine can print on plastic?
It depends on the plastic, thickness, format, ink, and durability needs. UV flatbed and screen printing are common, but no single machine suits every plastic.
What are two common printing methods?
Digital and screen printing are common production methods. First- and second-surface describe where ink sits on the substrate, so they aren't synonyms.
What does second surface mean in printing?
It means applying artwork to the back of a clear material so it's viewed through the front. The artwork is mirrored, and the clear face shields the ink.
Is acrylic good for outdoor signage?
Some grades work outdoors when ink, construction, mounting, UV exposure, temperature range, and edge treatment are right. Confirm the specification for your actual environment.
Which is more durable, first surface or second surface printing?
Second-surface protects ink behind clear material, but a properly laminated or coated first-surface graphic can also perform well. Substrate, exposure, finishing, and installation decide durability.
What is the difference between second-surface printing and second-surface window installation?
Second-surface printing places ink behind a transparent substrate. Second-surface window installation places a graphic on the interior side of glass, facing out, and says nothing about where the ink is.
